Case Construction SR160B Skid-Steer Loader

Case Construction S R160 B

Product Description

Case Construction SR160B skid steer.png

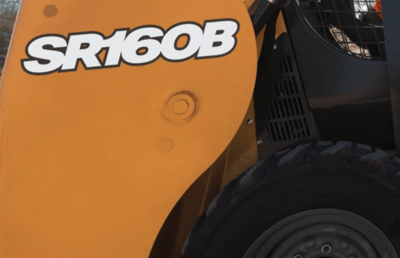

MEET THE SR160B SKID STEER

The SR160B is easy to own, operate and maintain. It’s light (5,645 pounds), short (just over six-feet tall at the top of the ROPS), narrow (at five-feet width) and compact for easy transportation and access to tight jobsites — all while retaining trademark CASE stability and low total cost of ownership.

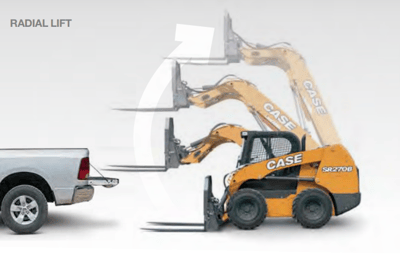

RADIAL LIFT CONFIGURATION

Case Construction Radial Lift.png
Radial lift machines raise in an arc, giving you further reach at mid-lift height. It’s ideal for reaching across a flatbed trailer, as well as grading, prying and below-grade digging.

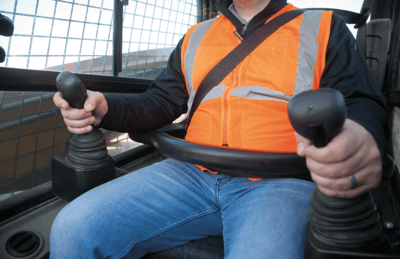

COMFORT AND EASE DELIVERED

Case Construction Operator Controls.png
CASE B Series skid steers offer easy entry, a spacious cab with adjustable controls, and advanced features like an 8-inch LCD display and Bluetooth radio. The machines provide customizable control settings, operator profiles, and Creep Speed for precise operation across various applications.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.31 x 3.94 in
Displacement
135.2 cu in
Emissions Tier (EPA)
Stage 5
Engine Cooling
Liquid
Engine Model
Perkins/ISM N844LT-F-45SL
Fuel Type
Diesel
Gross HP
60 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
5270 lb
Lift Arm Path
Radial lift
Travel Speed
7.4 mph
Operating Capacity (50% of Tip)
1600 lb
Tipping Load
3200 lb
Dump Angle @ Max Height
40.2 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
7 in
Height
141.4 in
Height to Bucket Hinge Pin
112 in
Height with Operator Cab
75.5 in
Length
95.9 in
Length with Standard Bucket
119.2 in
Length without Attachment
95.9 in
Operating Weight
5645 lb
Reach @ Maximum Height
22.7 in
Tire Size
10 x 16.5
Wheel base
37 in
Width
59.8 in
Capacities
Hydraulic Tank
7.71 gal
Fuel Tank
16 gal
Hydraulic System
Auxiliary Std Flow
18.4 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
1-Speed
Make/Model
Model
SR160B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
95.90 in
Width
59.80 in
Height
75.50 in
Weight
5210.00 lbs
