Case Construction SR240B Skid-Steer Loader

Case Construction S R240 B

Product Description

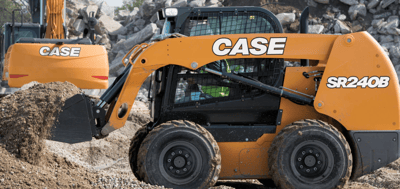

Case Construction SR240B skid steer.png

MEET THE SR240B SKID STEER

With a tight 44.4 in. wheelbase and a tidy length under 130 in. with excavating bucket, the CASE SR210B might feel like a compact skid steer. But this one muscles through a jobsite like a much bigger machine. With 74 hp, a rated operating capacity of 2,100 lbs. and bucket breakout forces of 7,270 lbs., you can flex some serious strength, all while getting into more confined spaces. It also features maintenance-free Tier 4 Final emissions. And the roomy cab features easy-to-operate joystick controls. So, fire up this concentrated powerhouse.

ECONOMY MODE & ENGINE PROTECTION

Case Construction 8 in LCD.png
Set shutdown timers to limit idling, engage the ignition timeout feature to limit battery drain, and leverage the engine protection capabilities to shut down the machine and protect the engine from conditions that may cause greater downtime.

RADIAL LIFT CONFIGURATION

Case Construction Radial Lift.png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ external EGR
Performance
Breakout Force
8680 lb
Lift Arm Path
Radial lift
Travel Speed
Low: 7 mph, High: 10.5 mph
Operating Capacity (50% of Tip)
2400 lb
Tipping Load
4800 lb
Dump Angle @ Max Height
38.1 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
8 in
Height
156.3 in
Height to Bucket Hinge Pin
125.1 in
Height with Operator Cab
78.7 in
Length
117.4 in
Length with Standard Bucket
142.2 in
Length without Attachment
117.4 in
Operating Weight
7400 lb
Reach @ Maximum Height
22.6 in
Tire Size
12 x 16.5
Wheel base
52 in
Width
69.6 in
Capacities
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SR240B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
117.40 in
Width
69.60 in
Height
78.80 in
Weight
7065.00 lbs
