Case Construction SR270B Skid-Steer Loader

Case Construction S R270 B

Product Description

Case Construction SR270B .png

MEET THE SR270B SKID STEER

The SR270B is one of the industry’s largest and most powerful radial lift skid steers — and at 90 horsepower, it provides three auxiliary hydraulic options including enhanced high flow (4,000 psi at 35 gallons per minute) to run demanding attachments such as cold planers and mulchers. Match that with the and intuitive operator interface and simple control customizations made possible through the 8-inch LCD multi-function display, and the SR270B will handle anything you can throw at it.

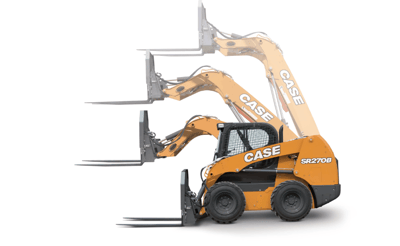

RADIAL LIFT CONFIGURATION

Case Construction SR270B skid steer.png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks

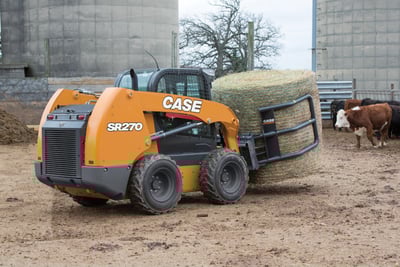

POWERSTANCE FOR STEADY STRENGTH

Case Construction S R270 B Skid Steer
A long, broad wheelbase gives you stability you can feel. This improves weight distribution, enables you to lift larger loads and reduces back-jolting, load-spilling bounce when hauling so you can retain more material and experience a faster, more comfortable ride.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5B FL413 D*C001
Fuel Type
Diesel
Gross HP
90 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
8677 lb
Lift Arm Path
Radial lift
Travel Speed
Low: 7 mph, High: 10.5 mph
Operating Capacity (50% of Tip)
2700 lb
Tipping Load
5400 lb
Dump Angle @ Max Height
38.1 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
8 in
Height
156.3 in
Height to Bucket Hinge Pin
125.1 in
Height with Operator Cab
78.8 in
Length
118.7 in
Length with Standard Bucket
143.9 in
Length without Attachment
118.7 in
Operating Weight
8117 lb
Reach @ Maximum Height
22.2 in
Tire Size
12 x 16.5
Wheel base
52 in
Width
69.8 in
Capacities
DEF
2.8 gal
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SR270B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
118.70 in
Width
69.80 in
Height
78.80 in
Weight
7773.00 lbs
