Case Construction SV280B Skid-Steer Loader

Case Construction S V280 B

Product Description

Case Construction S V280 B

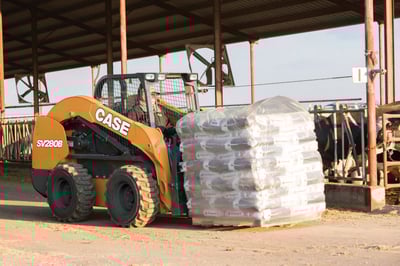

MEET THE SV280B SKID STEER

The SV280B offers large-frame power and performance with the efficiency of a medium-frame machine. Industry-leading visibility and an intuitive operator interface with 8-inch LCD multifunction display improves overall performance, and the 74-horsepower machine features standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 37.6 gpm) auxiliary hydraulics — all while retaining a maintenance-free Tier 4 Final emissions solution that requires no fluids or filter replacement.

ELECTRO-HYDRAULIC CONTROLS

Case Construction 8 in LCD.png
Dial the machine in to meet the demands of each application with all-new electro-hydraulic controls available through the 8-inch LCD multi-function display. Adjust general machine responsiveness to high, medium or low; or dive deeper to individually adjust tilt, lift and drive speed, as well as loader arm and control aggressiveness.

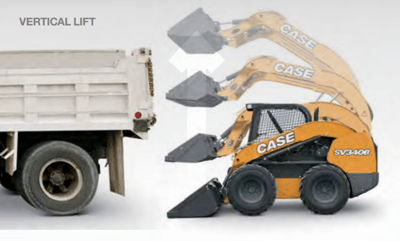

VERTICAL LIFT CONFIGURATION

Case Construction Vertical Lift.png
Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A*G001
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ external EGR
Performance
Breakout Force
8620 lb
Lift Arm Path
Vertical lift
Travel Speed
Low: 7 mph, High: 10.5 mph
Operating Capacity (50% of Tip)
2800 lb
Tipping Load
5600 lb
Dump Angle @ Max Height
54.7 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
8 in
Height
159.7 in
Height to Bucket Hinge Pin
129.5 in
Height with Operator Cab
78.8 in
Length
117.6 in
Length with Standard Bucket
142.8 in
Length without Attachment
117.6 in
Operating Weight
8000 lb
Reach @ Maximum Height
38.3 in
Tire Size
12 x 16.5
Wheel base
52 in
Width
69.8 in
Capacities
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SV280B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
117.60 in
Width
69.80 in
Height
78.80 in
Weight
7665.00 lbs
