Product Description

MEET THE SV340B SKID STEER

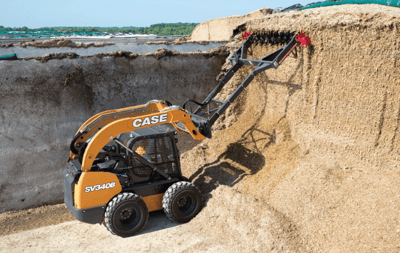

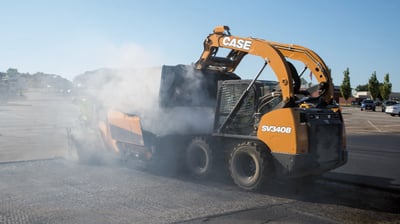

Here’s the biggest beast in the yard. It’s the CASE SV340B, the largest, most powerful skid steer in our lineup. With 90 hp, 3,400 lb. rated operating capacity and powerful auxiliary hydraulics, it’s a job-munching machine, capable of moving earth quickly, handling heavy palletized material and running robust attachments like stump grinders and cold planers. It also features one of the industry’s widest cabs, providing comfort along with superior visibility to work areas. It’s got intuitive joystick controls. And with a helpful 8-in. LCD screen with machine controls and vitals, it puts the pro in productivity.
POWERSTANCE FOR STEADY STRENGTH

A long, broad wheelbase gives you stability you can feel. This improves weight distribution, enables you to lift larger loads and reduces back-jolting, load-spilling bounce when hauling so you can retain more material and experience a faster, more comfortable ride.

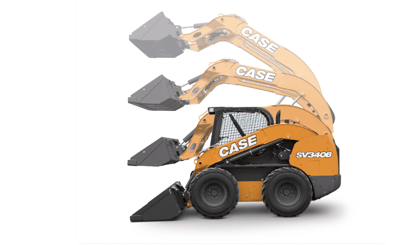

VERTICAL LIFT CONFIGURATION

Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS, FOPS, Canopy |
Engine | |
---|---|
Bore X Stroke | 3.9 x 4.3 in |
Displacement | 207 cu in |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Model | FPT F5B FL413D*C001 |
Fuel Type | Diesel |
Gross HP | 90 hp |
No. Of Cylinders | 4 |
Turbocharged Engine | Yes, w/ waste gate and external cooled EGR |
Performance | |
---|---|
Breakout Force | 9531 lb |
Lift Arm Path | Vertical lift |
Travel Speed | Low: 7.7 mph, High: 11.5 mph |
Operating Capacity (50% of Tip) | 3400 lb |
Tipping Load | 6800 lb |
Dump Angle @ Max Height | 46.7 degrees |
Driveline | 4WD |
Dimensions & Weight | |
---|---|
Ground Clearance | 9.6 in |
Height | 161.9 in |
Height to Bucket Hinge Pin | 131.6 in |
Height with Operator Cab | 80.4 in |
Length | 119.1 in |
Length with Standard Bucket | 144.3 in |
Length without Attachment | 119.1 in |
Operating Weight | 9100 lb |
Reach @ Maximum Height | 27.2 in |
Tire Size | 14 x 17.5 |
Wheel base | 52 in |
Width | 73.8 in |
Capacities | |
---|---|
DEF | 2.8 gal |
Hydraulic Tank | 12 gal |
Fuel Tank | 25.5 gal |
Hydraulic System | |
---|---|
Auxiliary Std Flow | 24.2 gpm |
Hydraulic System | Gear |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Transmission Range | 2-Speed |
Make/Model | |
---|---|
Model | SV340B |
Type | Skid-Steer Loader |
Product Dimensions & Weight | |
---|---|
Length | 119.10 in |
Width | 73.80 in |
Height | 80.40 in |
Weight | 8557.00 lbs |
