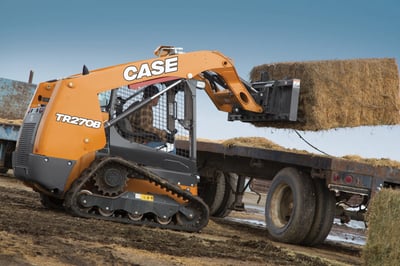

Case Construction TR270B Compact Track Loader

Case Construction T R270 B

Product Description

Case Construction T R270 B

MEET THE TR270B TRACK LOADER

The CASE TR270B is one of those machines that makes it all easier. At 8,270 lbs., it’s easy to transport. Once there, it’s simple to operate. The joystick controls are streamlined for easier grip and operation with trigger switches and convenient buttons. Plus, an 8-in. LCD display puts critical info within short reach. The machine goes easy on turf thanks to low ground pressure, while 74 horses make digging and loading a snap. The Tier 4 Final emissions is maintenance free. And the comfortable, roomy cab is a breeze to get in and out of. So, you can make quick work of one job and move right onto the next.

ECONOMY MODE & ENGINE PROTECTION

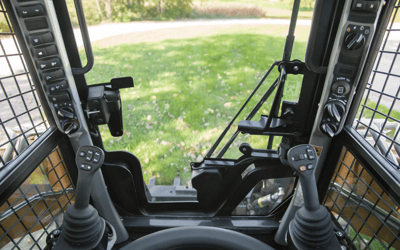

Case Construction Track Loader cab.png
Set shutdown timers to limit idling, engage the ignition timeout feature to limit battery drain, and leverage the engine protection capabilities to shut down the machine and protect the engine from conditions that may cause greater downtime.

RADIAL LIFT PATH

Case Construction Track Loader Radial Lift .png
Radial lift machines raise in an arc, giving you further reach at mid-lift height. It’s ideal for reaching across a flatbed trailer, as well as grading, prying and below-grade digging.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, Open Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
7270 lb
Ground Pressure
5.9 psi
Lift Arm Path
Radial lift
Travel Speed
Rubber tracks: 5.1-8 mph
Operating Capacity (50% of Tip)
2700 lb
Tipping Load
5400 lb
Dump Angle @ Max Height
38.1 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
8 in
Height
155.6 in
Height to Bucket Hinge Pin
125.1 in
Length
104.8 in
Length with Standard Bucket
129.1 in
Length without Attachment
104.8 in
Length of Track on Ground
55.9 in
Operating Weight
8270 lb
Reach @ Maximum Height
25.6 in
Track Width
12.6 in
Width
65.9 in
Capacities
Hydraulic Tank
8.5 gal
Fuel Tank
19.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TR270B
Type
Track Loader
Product Dimensions & Weight
Length
104.80 in
Width
65.90 in
Height
78.70 in
Weight
7970.00 lbs
