Case Construction TR340B Compact Track Loader

Case Construction T R340 B Loader

Product Description

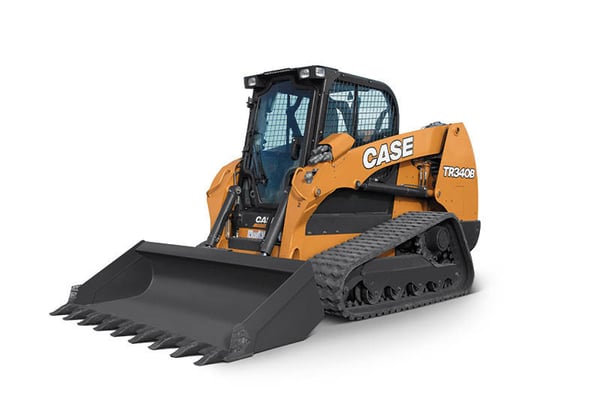

Case Construction TR340B track loader.jpg

MEET THE TR340B TRACK LOADER

The most powerful radial-lift CTL in the CASE lineup, the TR340B is fast and efficient ideal for both heavy earthmoving and fine grading. Its also excellent for working with palletized materials (3,400-pound rated operating capacity at 50 percent tipping load) and is a strong and stable platform for attachment operation with optional high-flow (3,050 psi at 37.6 gpm) or enhanced high-flow (4,000 psi at 35 gpm) auxiliary hydraulics.

RADIAL LIFT MACHINE

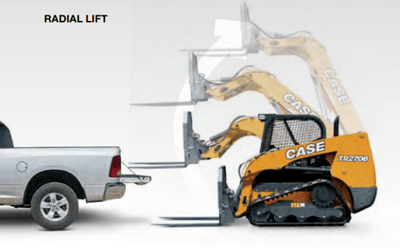

Case Construction Track Loader Radial Lift .png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks

EZ TRAC OPTION

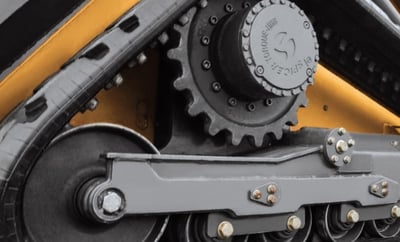

Case Construction TR340B EZ Trac.jpg
The EZ Trac suspension track on the TR340B improves operator comfort and tractive performance by featuring a rigid-mounted undercarriage with pivoting bogeys. It's maintenance-free, extends rubber track life, and enhances productivity while reducing ownership costs.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, Open Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5B FL413 D
Fuel Type
Diesel
Gross HP
90 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
8700 lb
Ground Pressure
4.4 psi
Lift Arm Path
Radial lift
Travel Speed
Rubber tracks: 5.1-8 mph
Operating Capacity (50% of Tip)
3400 lb
Tipping Load
6800 lb
Dump Angle @ Max Height
38.1 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
9.5 in
Height
157.2 in
Height to Bucket Hinge Pin
126.7 in
Length
118.2 in
Length with Standard Bucket
142.6 in
Length without Attachment
118.2 in
Length of Track on Ground
64.5 in
Operating Weight
10000 lb
Reach @ Maximum Height
24.7 in
Track Width
17.1 in
Width
76.5 in
Capacities
DEF
2.8 gal
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TR340B
Type
Track Loader
Product Dimensions & Weight
Length
118.20 in
Width
76.50 in
Height
80.40 in
Weight
9656.00 lbs
