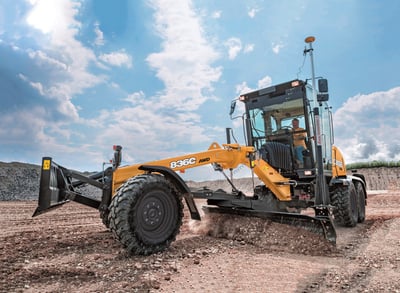

Case Construction 836C Motor Grader
New
Case Construction 836C Motor Grader
Model: 836C
- 137 horsepower
- 26,466 lb. operating weight
- 6 forward/3 reverse speeds
Product Description
MEET THE 836C MOTOR GRADER
At 24,466 lbs., the Tier 4 Final CASE 836C Motor Grader offers an ideal fit for small-to-mid-size grading applications such as residential site prep, snow removal and municipality work. Standard high-performance features and direct-mounted hydraulic controls that give operators a more responsive feel results in greater accuracy, smooth operation and less rework.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 409 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | F4HFE6133 |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 137 hp |
| No. Of Cylinders | 6 |
| Performance | |
|---|---|
| Articulation Type | Hydraulic actuated, no external stop |
| Circle Type | Welded construction |
| Forward Speeds | 3.3-24.8 mph |
| Reverse Speeds | 3.5-18.1 mph |
| Mainframe Type | All welded box |
| Moldbar Type | High-carbon steel |
| Moldbar Max Lift Above Ground | 15.51 in |
| Steering Type | Open center/reaction, w/o LS |
| Dimensions & Weight | |
|---|---|
| Blade Width | 132 in |
| Distance Between Tandem Axels | 49 in |
| Front Axel Ground Clearance | 19.1 in |
| Height with Operator Cab | 121 in |
| Length | 328 in |
| Rear Axel Ground Clearance | 12.2 in |
| Turning Radius Outside | 260 in |
| Wheel base | 211 in |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Make/Model | |
|---|---|
| Model | 836C |
| Type | Motor Grader |
| Product Dimensions & Weight | |
|---|---|
| Length | 328.00 in |
| Width | 92.00 in |
| Height | 121.00 in |
| Weight | 26466.00 lbs |
