Jacobsen HR700 Wide Area Rotary Mower

Jacobsen HR700

Product Description

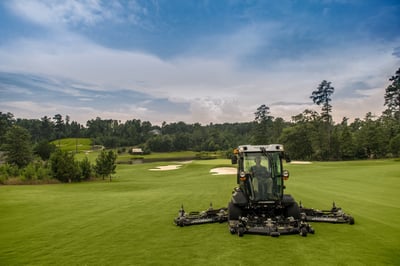

Jacobsen HR700 mower.jpg

MEET THE HR700 ROTARY MOWER

The HR700 is a powerful large-area rotary mower equipped with MARBAIN Boron Alloy Steel Blades, allowing it to cut through roughs, surrounds, and other large areas effortlessly in any condition. With the widest cut width in its class, a narrow transport width, tilt sensor technology for safety, and a lower weight for enhanced efficiency and fuel economy, the HR700 offers unmatched comfort for extended operation.

OPTIMAL PERFORMANCE

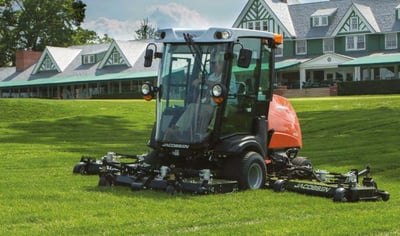

Jacobsen HR700 rotary mower.jpg
The ISO-mounted operator platform and InCommand control system with a full-color display screen ensure a comfortable and productive ride, offering advanced operator controls and diagnostics at your fingertips. With Q Amp variable rate steering, an easy-access service bay, and an optional cab tailored to your needs, this mower provides both convenience and customization for optimal performance.

LARGE-SCALE MOWING

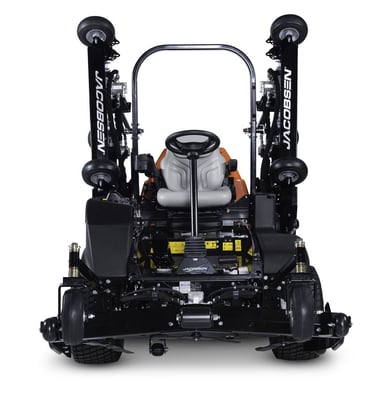

Jacobsen HR700 Mower
The high-strength, low-weight design of this mower maximizes efficiency and fuel economy, powered by a robust 65.2 hp Kubota turbodiesel engine. With a 168-inch cut width and a 17-acre per hour cutting capacity, it is built for large-scale, efficient mowing operations.

Specs

Additional Specs
Cab Enclosure
Optional
Cut Type
Rotary
Golf Type
Rough and Trim Mowers
Operator Station
ROPS, Enclosed Cab
Power Type
Diesel
Engine
Engine Model
Kubota
Fuel Type
Turbo Diesel
Gross HP
65.2 hp
Performance
Travel Speed
15.5 mph
Power Type
Diesel
Traction Drive
Hydrostatic closed loop parallel-cross-series SureTrac system
Mowing Speed
10 mph
Driveline
4WD
Dimensions & Weight
Length
143 in
Wheel base
64 in
Deck
Blade Material
MARBAIN boron alloy steel
Cutting Height
1 - 4.5" in
Deck Lift / Lower
Individual via fingertip operated joysticks
Deck Size
168 in (1 x 60 in (1.52 m) front deck and 2 x 60 in (1.52 m) wing units)
Capacities
Fuel Tank
20.4 gal
Make/Model
Model
HR700
Type
Golf Mower, Sports Mower, Commercial Mower
Product Dimensions & Weight
Length
143.00 in
Width
176.00 in
Height
83.00 in
Weight
4479.00 lbs
