Jacobsen TR330 Cylinder Trim Mower

Jacobsen TR330 Mower

Product Description

Jacobsen TR330 Adaptshift.jpg

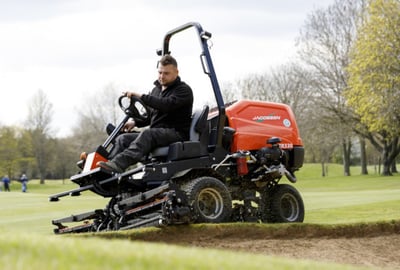

MEET THE TR330 REEL MOWER

Comfort, cut quality, maneuverability, and power come together to make a mower that can safely reach every blade of grass on your golf course. The TR330 provides Jake’s Signature Cut Trusted by Generations and side-shifting reels can trim around bunkers, ponds, lakes, and other hazards with ease.

PRECISION MOWING

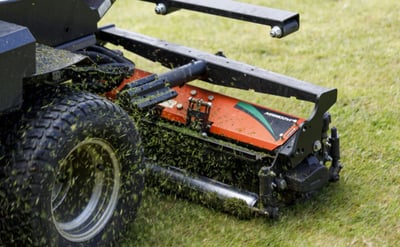

Jacobsen TR330 cutting.jpg
The TR330 high traction, side-shifting trim mower is consistently dependable, featuring ADAPTISHIFT Reels— allows all three reels to shift from left to right getting a closer cut to bunkers and a clean, green engine, with the narrowest width for easy transport and storage. It combines comfort, maneuverability, cut quality, and power to ensure you can safely reach every blade of grass.

QUALITY FEATURES

Jacobsen TR330 cutting.jpg
The TR330 features 26-inch or 30-inch hardened, high manganese carbon steel reels with options of 5, 7, or 11 blades per reel, available in both 3WD and 4WD configurations. Powered by a 24.8-horsepower Kubota diesel engine allowing for a mowing speed of 6.2 mph. And with a 7.6 gallon fuel tank more mowing And with a 7.6-gallon fuel tank, more mowing can be done without frequent refueling stops.

Specs

Additional Specs
Cut Type
Reel
Golf Type
Rough and Trim Mowers
Operator Station
ROPS
Power Type
Diesel
Engine
Engine Model
Kubota
Fuel Type
Diesel
Gross HP
24.5 hp
Performance
Travel Speed
8.7 mph
Power Type
Diesel
Reel Drive
Fixed displacement hydraulic
Traction Drive
Parallel-series "on-demand" 3WD
Mowing Speed
6.2 mph
Driveline
3WD
Dimensions & Weight
Length
97 in
Wheel base
43.5 in
Deck
Blade Material
Hardened, High Manganese Carbon Steel
Blades Per Reel
5, 7, or 11
Cutting Height
0.37 - 2.75 in
Deck Size
72 in (1.83 m) or 84 in (2.13 m) featuring ADAPTISHIFT with up to 12 in (30.5 cm) of offset
Capacities
Fuel Tank
7.6 gal
Make/Model
Model
TR330
Type
Golf Mower, Sports Mower, Commercial Mower
Product Dimensions & Weight
Length
97.00 in
Width
83.00 in
Height
80.00 in
Weight
2299.00 lbs
