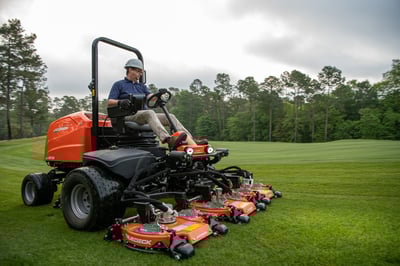

Jacobson AR530 Articulating Rotary Mower
New
Jacobson AR530 Articulating Rotary Mower
Model: AR530
- All Terrain Contour Rotary Mower
- 90-inch Cutting Width
- 50.2 HP Diesel
Product Description
MEET THE AR530 ROTARY MOWER

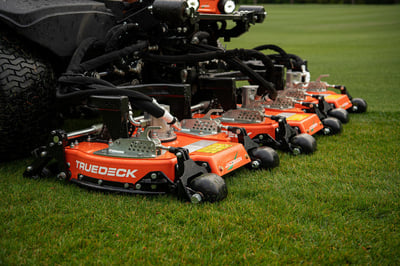

Redesigned from the ground up, the AR530 contour rotary mower is engineered for top-tier performance, featuring TRUEDECK heavy-duty contouring decks that provide best-in-class clippings distribution and superior after-cut quality. It smoothly climbs hills and contours, eliminating the risk of scalping. With quick and easy deck adjustments and a reliable Kubota engine, the AR530 delivers both precision and dependability.
PRECISE CUTTING
EFFORTLESS OPERATION
Specs
| Additional Specs | |
|---|---|
| Cut Type | Rotary |
| Golf Type | Rough and Trim Mowers |
| Operator Station | ROPS |
| Power Type | Diesel |
| Engine | |
|---|---|
| Engine Model | Kubota |
| Fuel Type | Diesel |
| Gross HP | 50.2 hp |
| Performance | |
|---|---|
| Travel Speed | 12 mph |
| Power Type | Diesel |
| Traction Drive | SureTrac II AWD, a unique parallel hydrostatic system, servo-controlled variable displacement hydro; four high-torque wheel motors; 2WD transport and reverse |
| Mowing Speed | 7 mph |
| Driveline | AWD |
| Dimensions & Weight | |
|---|---|
| Wheel base | 63 in |
| Deck | |
|---|---|
| Blade Material | heat treated alloy combo blades |
| Cutting Height | 0.75 - 4.5 in |

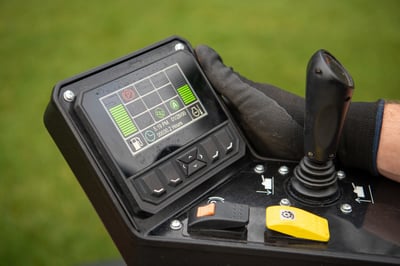

| Deck Lift / Lower | Hand operated, joystick controlled hydraulic lift system |
| Deck Size | 90 in (5 x 23 in rotary cutting units) |
| Capacities | |
|---|---|
| Fuel Tank | 17 gal |
| Make/Model | |
|---|---|
| Model | AR530 |
| Type | Golf Mower, Sports Mower, Commercial Mower |
| Product Dimensions & Weight | |
|---|---|
| Length | 137.50 in |
| Width | 95.30 in |
| Height | 91.60 in |
| Weight | 3451.00 lbs |
