Product Description

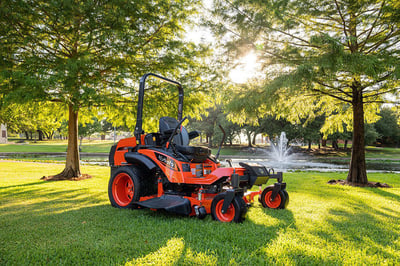

MEET THE ZD1021
Versatile enough to navigate the most intricate of yards, the Kubota ZD1021 assists you in ensuring your lawn gets the results you've been searching for. Keep things clean with a side discharge chute and the 60-inch mower deck featuring three blades and a shaft drive for increased reliability and to keep you running efficiently throughout the day. You'll enjoy kicking back in the adjustable suspension seat as you adjust the dual operation levers to your liking and take off at 21.6 horsepower. Precise and practical, the ZD1021 promises to get the job done and do it right the first time.
*ZD Series mowers rank as the number one selling diesel zero-turn mower series for 5 years. Based on Outdoor Power Equipment Institute market statistics from 2018 - 2022 unit shipments.
SIMPLIFYING MAINTENANCE

The hydraulic deck lift allows for effortless adjustment of the cutting height, ensuring precision and efficiency in varying mowing conditions. The robust shaft drive system provides reliable power transfer, enhancing the mower's performance and reducing maintenance needs compared to traditional belt-driven systems.
KUBOTA DIESEL ENGINE

COMFORT AND CONVENIENCE
- Foldable ROPS for easier storage and transportation of the mower
- Easy mower and engine access, plus maintenance lift
- Air-ride suspension seat that can be adjusted with the touch of a button for exceptional comfort, and an unmatched ride quality.
- Semi-pneumatic (flat-free) front caster tires
- Large and bright LCD panel – the biggest in its class – shows all the key indicators you need to maximize cutting performance and operability
- Adjustable HST levers not only provide more legroom, but also more settings to choose from
- Hands-free parking brake
- Thick platform mat to reduce noise and vibration while providing extra comfort

Specs
Additional Specs | |
---|---|
Clutch | Hydraulic independent PTO |
Drive Wheel | 24 x 12.0-14, low profile tire |
Front Caster Wheel Size | 13 x 6.5-6 smooth pneumatic |
Seat | Deluxe suspension seat |
Engine | |
---|---|
Displacement | 54.8 cu in |
Engine Model | Kubota D902-E4-ZD-2 |
Gross HP | 21.6 hp |
Performance | |
---|---|
Travel Speed | 9 mph |
Dimensions & Weight | |
---|---|
Drive Wheel | 24 x 12.0-14, low profile tire |
Front Caster Wheel Size | 13 x 6.5-6 smooth pneumatic |
Tire Size | Rear: 24 x 12.0-14, low profile, Front: 13 x 6.5-6 |
Deck | |
---|---|
Blade Tip Speed | 18200 ft/min |
Cutting Height | 1-5 in |
Deck Size | 60 in |
Mower Deck | RCK60P-1000Z |
Capacities | |
---|---|
Fuel Tank | 6 gal |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | ZD1021 |
Type | Zero-Turn Mower |
Product Dimensions & Weight | |
---|---|
Length | 88.80 in |
Width | 73.80 in |
Height | 74.40 in |
Weight | 1389.00 lbs |
