Kubota ZD1611 Zero-Turn Mower

Z D1600 Series

Product Description

Kubota ZD1000 #1 Diesel Zero Turn.webp

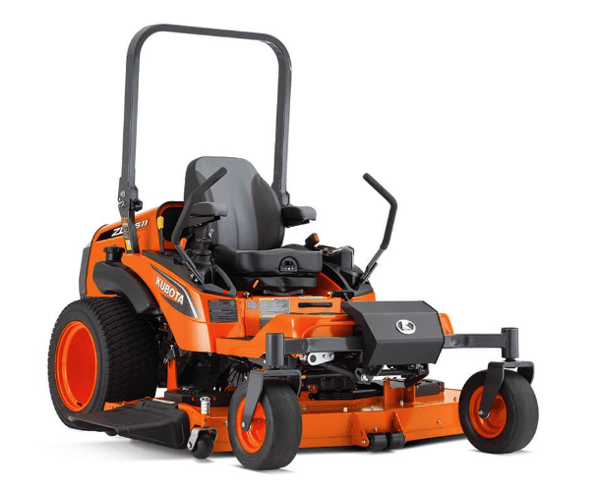

MEET THE ZD1611

Undoubtedly the Kubota ZD1611, comes packed with exceptional new features to make an already proven mower even better. Experience outstanding cutting performance with 60" and 72" Rear Discharge, or a 72" Side Discharge deck with our Aerodynamic Cutting System (ACS). The new CSR Kubota engine delivers 30.8 horsepower to get you mowing through the toughest jobs. Keep an eye on performance with a new LCD panel that delivers easy to read text so you know how your engine is performing. New tie down points ensure your Kubota mower is secure while transporting it from site to site. It's clear to see that the ZD1611 was built to impress and never disappoint.

*ZD Series mowers rank as the number one selling diesel zero-turn mower series for 5 years. Based on Outdoor Power Equipment Institute market statistics from 2018 - 2022 unit shipments.

ENGINE'S THAT RUN THE WORLD

Kubota ZD1611 Engine.jpg

The Kubota Kubota V1505-CR-TE5-ZD1 Common Rail diesel engine incorporates the DPF that acts to reduce the hydrocarbon and noxious gases contained in emissions to carbon dioxide and water. Both operator-friendly and environment-friendly, this outstanding engine generates clean emissions with reduced nitrogen oxide (NOx) and PM.

DURABLE TRANSMISSION

Kubota ZD1611 Transmission.jpg
Kubota engines are paired with Kubota's original hydrostatic transmission that offers faster, smoother response under all loading conditions. This air-tight transmission offers little to no maintenance, with the exception of your regular hydraulic oil change.

PLOT PERFECT

The Kubota ZD1611 model zero-turn mower stands out as the premier choice for commercial landscapers with large properties spanning 10 acres or more due to several key features such as, cutting decks ranging from 60-72-inches, top speeds of up to 10.6 miles per hour, and versatility in attachment options, allowing it to be used for a variety of landscaping tasks beyond mowing, such as mulching, bagging, or towing. This versatility makes it a valuable investment for landscapers looking to expand their service offerings.

Kubota ZD1000 Mower.jpg

Specs

Additional Specs
Clutch
Hydraulic independent PTO
Drive Wheel
26 x 12.0-16, low profile tire
Front Caster Wheel Size
15 x 6.5-8, smooth semi-pneumatic, low profile
Seat
Air-ride suspension with reclining and lumbar support
Engine
Displacement
91.41 cu in
Engine Model
Kubota V1505-CR-TE5-ZD1
Gross HP
30.8 hp
Performance
Travel Speed
10.6 mph
Dimensions & Weight
Drive Wheel
26 x 12.0-16, low profile tire
Front Caster Wheel Size
15 x 6.5-8, smooth semi-pneumatic, low profile
Length
105.7 in
Tire Size
Rear: 26 x 12-16, Front: 15 x 6.5-8 smooth semi-pneumatic, low profile
Deck
Blade Tip Speed
17200-18300 ft/min
Cutting Height
1-5 in
Deck Size
60 in R, 72 in, 72 in R
Mower Deck
RCK60RP-1500Z, RCK72P-1500Z
Documents
Full Spec
Capacities
Fuel Tank
13 gal
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
ZD1611
Type
Zero-Turn Mower
Product Dimensions & Weight
Length
105.70 in
Width
85.80 in
Height
78.70 in
Weight
2105.00 lbs
