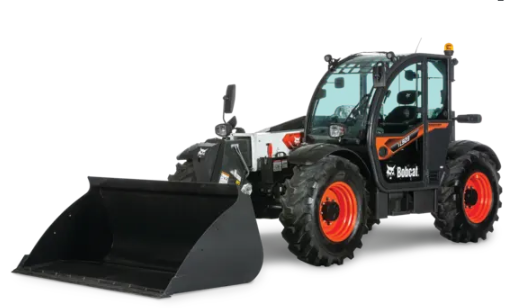

Bobcat TL923 Telehandler
New
Bobcat TL923 Telehandler
Model: TL923
- 277 in. lift height
- 135 hp horsepower
- 18,158 lb. operating weight
Product Description
MEET THE TL923 TELEHANDLER
Bobcat's most powerful and productive telehandler yet, the TL923. The high 135 engine horsepower and heavy-duty lift cylinder produce more pushing strength and lifting power than the TL723. Load Sense Hydraulic System delivers faster boom speeds and heavier lifting, giving operators extra power and smoother control when loaded, and the fastest boom cycle times possible when empty. Push the limits with five operation modes giving you the versatility you need for a wide variety of applications.
Z-BAR BOOM LINKAGE
FOUR STEERING MODES
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Standard |
| Cab Enclosure | Standard |
| Cab Heater | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Aspiriation | Liquid |
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Type | Diesel |
| Gross HP | 135 hp |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Bucket Breakout Force | 15736 lbf |
| Boom Breakout Force | 9727 lbf |
| Lift Height | 277 in |
| Travel Speed | 24.8 mph |
| Rated Capacity @ Full Height | 7056 lb |
| Rated Capacity @ Max Reach | 3749 lb |
| Max Reach | 158.3 in |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Height | 95.4 in |
| Height With Beacon | 100.8 in |
| Length | 243.3 in |
| Operating Weight | 18158 lb |
| Wheel base | 113 in |
| Width | 90.6 in |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 39.6 gal/min |
| Auxiliary Pressure | 3699 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | TL923 |
| Type | Telehandler |
| Product Dimensions & Weight | |
|---|---|
| Length | 243.30 in |
| Width | 90.60 in |
| Height | 95.40 in |
| Weight | 18158.00 lbs |
