New Holland TH7.42 Elite Telehandler
New
New Holland TH7.42 Elite Telehandler
Model: TH7.42 Elite
- 23 ft. lift height
- 133 horsepower
- 17,637 lb. operating weight
Product Description

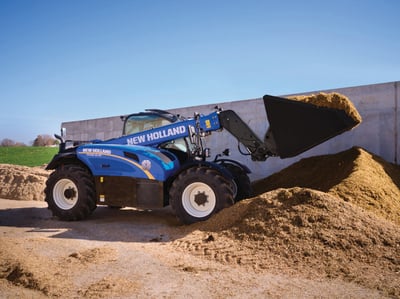

NEW HOLLAND TH7.42 ELITE
The TH7.42 ELITE supplies the power, performance, and comfort you need to handle every job. It features 133 max horsepower and a 6F/3R full powershift transmission with three shift modes for optimum efficiency and ease. For greater efficiency, the forward and reverse power shuttle can be selected via buttons on the main joystick or the lever mounted on the steering column. This model also features a limited-slip differential on both front and rear axles and a high power-to-weight ratio for heavy material tasks.
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Standard |
| Engine | |
|---|---|
| Aspiriation | Turbo intercooler |
| Displacement | 274 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Oil | 3.2 gal |
| Performance | |
|---|---|
| Lift Capacity | 9259 lbs |
| Lift Height | 276 in |
| Travel Speed | 24.8 mph |
| Rated Capacity @ Full Height | 5511 lbs |
| Rated Capacity @ Max Reach | 3306 lbs |
| Max Reach | 159 in |
| Dimensions & Weight | |
|---|---|
| Height | 96 in |
| Length | 206 in |
| Operating Weight | 17637 lbs |
| Wheel base | 118 in |
| Width | 92 in |
| Capacities | |
|---|---|
| Fuel Tank | 36.9 gal |
| Hydraulic Oil Tank gal. | 27.7 gal |
| Engine Oil | 3.2 gal |
| Hydraulic System | |
|---|---|
| Variable Pump (gpm (Lpm)) | 36.9 gpm |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Make/Model | |
|---|---|
| Model | TH7.42 Elite |
| Type | Telehandler |
| Product Dimensions & Weight | |
|---|---|
| Length | 261.00 in |
| Width | 92.00 in |
| Height | 96.00 in |
| Weight | 17637.00 lbs |
