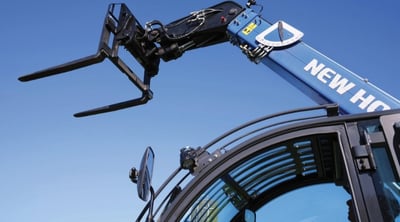

New Holland TH9.35 Plus Telehandler
New
New Holland TH9.35 Plus Telehandler
Model: TH9.35 Plus
- 29.8 ft. lift height
- 146 horsepower
- 7,716 lbs. operating weight
Product Description
NEW HOLLAND TH9.35 PLUS
The TH9.35 PLUS is the ideal choice for mixed-farm applications. With maximum power output of 146 horsepower, full-time 4WD, a front limited-slip differential, three steering modes for ultimate maneuverability, and a smooth 4F/3R powershift transmission no job is unattainable. Choose your speeds using buttons on the console-mounted joystick and make direction changes with the shuttle lever on the steering column. A top speed of 21 mph (34 kph) is achieved.
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Standard |
| Engine | |
|---|---|
| Aspiriation | Turbo intercooler |
| Displacement | 274 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Oil | 3.2 gal |
| Performance | |
|---|---|
| Lift Capacity | 7716 lbs |
| Lift Height | 360 in |
| Travel Speed | 21 mph |
| Rated Capacity @ Full Height | 3306 lbs |
| Rated Capacity @ Max Reach | 1102 lbs |
| Max Reach | 268 in |
| Dimensions & Weight | |
|---|---|
| Height | 96 in |
| Length | 263 in |
| Operating Weight | 18916 lbs |
| Wheel base | 118 in |
| Width | 92 in |
| Capacities | |
|---|---|
| Fuel Tank | 36.9 gal |
| Hydraulic Oil Tank gal. | 27.7 gal |
| Engine Oil | 3.2 gal |
| Hydraulic System | |
|---|---|
| Variable Pump (gpm (Lpm)) | 36.9 gpm |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Make/Model | |
|---|---|
| Model | TH9.35 Plus |
| Type | Telehandler |
| Product Dimensions & Weight | |
|---|---|
| Length | 263.00 in |
| Width | 92.00 in |
| Height | 96.00 in |
| Weight | 18916.00 lbs |
