New Holland 155 Box Spreader
New
New Holland 155 Box Spreader
Model: 155
- 10,000 maximum net load
- 217 cu. ft single beater heap
- 50 minimum PTO horsepower required
Product Description

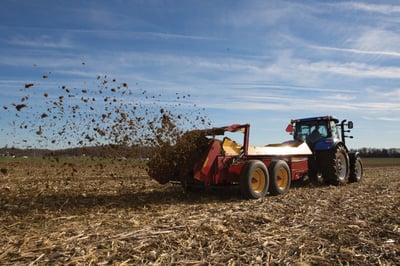

NEW HOLLAND 155 BOX SPREADER
The 155 box spreader requires low 50 PTO horsepower tractor requirements, is equipped with 12 bolt-on, high strength, steel paddles, has a unique floating floor that won't rot, warp, chip, crack, peel or splinter, making it extremely low maintenance, and choose either heavy-duty T-rod or pintle-type apron chains to match your spreading conditions. Convenient rotary quadrant control allows the operator to set the apron speed from the tractor, including neutral, slow-unloading, fast-unloading, and clean-out positions.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 50 hp |
| Dimensions & Weight | |
|---|---|
| Overall Length | 224.4 in (5.70 m) |
| Overall Width | 92.5 in (2.35 m) |
| Weight Hubs Only ( lbs) | 1902 lbs |
| Inside bed length (in. (m)) | 154.3 (3.92) |
| Inside Width of Bed (in. (m)) | 60.9 (1.55) |
| Inside Bed Depth, Top of Flare (in. (m)) | 22.6 (0.58) |
| Spreader Specs | |
|---|---|
| Capacity Heaped, Double Beater (cu. ft. (m³)) | 261 (7.39) |
| Capacity Heaped, single beater (cu. ft (m³)) | 217 (6.14) |
| Maximum Net Load (lbs. (kg)) | 10,000 (4536) |
| Mechanical Drive | 2 (plus 1 slow-speed option) |
| Number of Beater Paddles | 12 |
| Struck Level (cu. ft. (m³)) | 132 (3.74) |
| Make/Model | |
|---|---|
| Model | 155 |
| Type | Spreader |
| Product Dimensions & Weight | |
|---|---|
| Length | 224.40 in |
| Width | 92.50 in |
| Height | 63.80 in |
| Weight | 1902.00 lbs |
