New

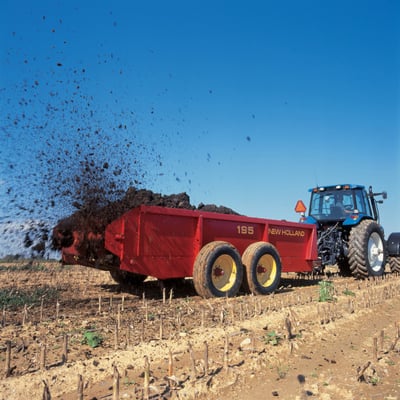

New Holland 195 Box Spreader
New
New Holland 195 Box Spreader
Model: 195
- 20,000 lb. maximum net load
- 391 cu. ft single beater heap
- 100 minimum PTO horsepower required
Product Description
NEW HOLLAND 195 NOX SPREADER
The 195 box spreader, with a capacity of 444 cubic feet, is built for durability and low maintenance, featuring a heavy-duty jack mounted within the hitch for extra protection, which swings away during transport. It includes up to 12 high-strength steel beaters designed to reduce breakage, along with bolt-on paddles that ensure precise cutting and shredding for a fine, wide spread pattern. Its reliable straight-line V-belt drive operates smoothly and quietly, eliminating the need for a slip clutch, while offering the choice between pintle-type or hydraulic drive apron chains to suit different spreading needs.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 100 hp |
| Dimensions & Weight | |
|---|---|
| Overall Length | 308 in (7.82 m) |
| Overall Width | 111 in (2.81 m) |
| Weight Hubs Only ( lbs) | 3920 lbs |
| Inside bed length (in. (m)) | 192 (4.88) |
| Inside Width of Bed (in. (m)) | 72 (1.83) |
| Inside Bed Depth, Top of Flare (in. (m)) | 32 (0.81) |
| Spreader Specs | |
|---|---|
| Capacity Heaped, Double Beater (cu. ft. (m³)) | 444 (12.57) |
| Capacity Heaped, single beater (cu. ft (m³)) | 391 (11.07) |
| Maximum Net Load (lbs. (kg)) | 20,000 (9072) |
| Mechanical Drive | 2 (plus 1 slow-speed option) |
| Number of Beater Paddles | 12 |
| Struck Level (cu. ft. (m³)) | 272 (7.70) |
| Make/Model | |
|---|---|
| Model | 195 |
| Type | Spreader |
| Product Dimensions & Weight | |
|---|---|
| Length | 308.00 in |
| Width | 111.00 in |
| Height | 69.80 in |
| Weight | 3920.00 lbs |
