New Holland Flexi-Coil P4580 Air Cart
New
New Holland Flexi-Coil P4580 Air Cart
Model: P4580
- 4 compartments
- 580 bushel capacity
- Tow-behind or tow-between
Product Description

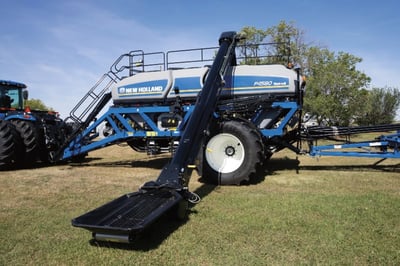

FLEXI-COIL P4580 AIR CART
The New Holland P4580 Air Cart offers a 580-bushel capacity with four compartments, enabling efficient application of seed, fertilizer, or granular products in a single pass. It features a standard pneumatic auxiliary fill and deluxe auger, with an optional conveyor that allows for filling three openings simultaneously without repositioning the hopper. Equipped with the IntelliRate Multi-Segment/Variable Rate Metering system, this air cart enhances accuracy and efficiency, allowing operators to cover more acres per hour, reduce refill stops, and benefit from ISO 11783 (ISOBUS) compliance for quick and easy connectivity.
Specs
| Dimensions & Weight | |
|---|---|
| Height | 13' 4"-15' 8" |
| Width | 14' 7"-18' 5" |
| Tow-Behind Length (in. (mm)) | 532 (13504) |
| Tow-Between Length (in. (mm)) | 484 (12285) |
| Weight, Tow-Behind (empty) (lbs. (kg)) | 23520 (10 668) |
| Weight, Tow-Between (empty) (lbs. (kg)) | 20400 (9253) |
| Capacities | |
|---|---|
| Total (bu. (L)) | 580 (20439) |
| Tank 1 (bu. (L)) | 190 (6695) |
| Tank 2 (bu. (L)) | 105 (3700) |
| Tank 3 (bu. (L)) | 260 (9162) |
| Seeding Specs | |
|---|---|
| Base Front | 18.4-38 8PR R-1 Single |
| Base Rear - TBH | 900/60R32 CHO 176A8 R-1W
Single |
| Bin Level Sensors | Standard |
| Chassis | Durable High Strength Frame with Powder Coat Paint Finish |
| Compartments | 4 |
| Deluxe Auger | Standard |
| Meter Drive System | Intellirate Modular Metering System - IMMS |
| Pneumatic Fill | Standard |
| Make/Model | |
|---|---|
| Model | P4580 |
| Type | Air Cart |
| Product Dimensions & Weight | |
|---|---|
| Length | 532.00 in |
| Width | 221.00 in |
| Height | 188.00 in |
| Weight | 23520.00 lbs |
