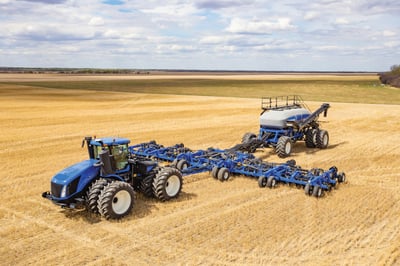

New Holland P2082 Air Disc Drill
New
New Holland P2082 Air Disc Drill
Model: P2082
- 30, 40, 50, or 60 ft. toolbar width options
- 10 in. available spacing
- 4.5-8 mph operating speeds
Product Description
P2082 AIR DISC DRILL
The P2082 double-shoot air disc drill is designed for one-pass placement of seed and fertilizer with accuracy for uniform emergence, better stands, higher yields and more profit for you. It's suited to a wide spectrum of tillage practices, including no till, minimum till or conventional seeding. Choose from seeding widths of 30, 40, 50 and 60 ft. with available 10 in. (25.4 cm) row spacing. The patented parallel-link opener design delivers industry-leading seed and fertilizer placement accuracy at speeds up to 8 mph.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 216-432 hp |
| Dimensions & Weight | |
|---|---|
| Length w/ Rear Hitch Pin | 36.4-38.6 ft |
| Transport Height | 13.1 -14.8 ft |
| Transport Width ft. | 12-18.7 ft |
| Toolbar Width | 30 ft, 40 ft, 50 ft, 60 ft |
| Hydraulic System | |
|---|---|
| Hydraulic Requirements | 30 & 40 ft options: 15 gpm -2 remotes, 50 & 60 ft options: 30 gpm -2 remotes |
| Seeding Specs | |
|---|---|
| Available Spacing | 10 in |
| Discs (in. (cm)) | 18 in (45.7) at 7 degrees |
| No. Of Row Units | 36-72 |
| Wing Flex | 15 degrees up, 10 degrees down |
| Wing Sections | 30 & 40 ft options: 3, 50 & 60 ft options: 5 |
| Make/Model | |
|---|---|
| Model | P2082 |
| Type | Air Disc Drill |
| Product Dimensions & Weight | |
|---|---|
| Length | 463.20 in |
| Width | 224.40 in |
| Height | 177.60 in |
| Weight | 43500.00 lbs |
