New Holland P2185 Air Disc Drill
New
New Holland P2185 Air Disc Drill
Model: P2185
- 30 and 40 ft. toolbar width options
- 7.5, 10, and 15 in. available spacing options
- 5-8 mph operating speeds
Product Description

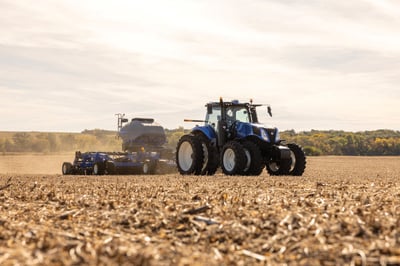

P2185 AIR DISC DRILL
The P2185 air disc drill is available in 30- and 40-feet configurations, and offered with 7.5-, 10-, and 15-inch spacing. The mounted seed tank has 40 bushel larger carrying capacity than previous models, and is designed for easy access to metering assembly for adjusting, cleanout, and servicing. The 30-foot model offers a 110-bushel capacity, while the 40-foot model offers a 140-bushel capacity.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 98-360 hp |
| Dimensions & Weight | |
|---|---|
| Transport Height | 13' 1"-13' 10" |
| Transport Width ft. | 12-18.5 ft |
| Toolbar Width | 30 ft, 40 ft |
| Hydraulic System | |
|---|---|
| Hydraulic Requirements | 30 gpm -3 remotes |
| Seeding Specs | |
|---|---|
| Available Spacing | 7.5 in, 10 in, 15 in |
| Discs (in. (cm)) | 18 in (45.7) at 7 degrees |
| Display System | Requires an ISO11783 compliant display such as Intelliview IV |
| No. Of Row Units | 24-64 |
| Wing Flex | 15 degrees up, 10 degrees down |
| Wing Sections | 3 |
| Make/Model | |
|---|---|
| Model | P2185 |
| Type | Air Disc Drill |
| Product Dimensions & Weight | |
|---|---|
| Length | 358.00 in |
| Width | 222.00 in |
| Height | 166.00 in |
| Weight | 28360.00 lbs |
