Case Construction 570N EP N-Series Tractor Loader
New
Case Construction 570N EP N-Series Tractor Loader
Model: 570N EP
- 74 engine horsepower
- 6,503 lb lift capacity
- Up to 24-mph
Product Description

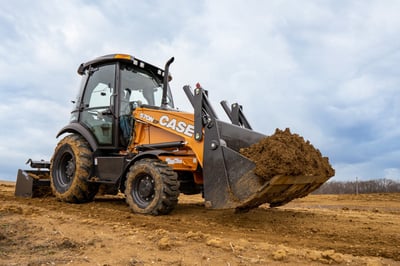

MEET THE 570N EP TRACTOR LOADER
The Tier 4 Final CASE 570N EP tractor loader combines unbeatable lifting strength, ground speeds as fast as 24mph, and user-friendly features to provide contractors a skip loader that's impressively cost effective, and incredibly easy to own and operate. It's available with a rear 540-RPM PTO or 3-point hitch, as well as a hydraulic front quick coupler for optimal versatility.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Charged Air |
| Engine Model | FPT F5HFL463D |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 3.8-24 mph |
| Max Dump Height | 104 in |
| Dump Angle @ Max Height | 45-46 degrees |
| Lift Capacity to Full Height | 6503-6537 lb |
| Dimensions & Weight | |
|---|---|
| Operating Height | 13' 8"-14' 3" |
| Operating Weight | 11134-14508 lb |
| Wheel base | 84 in |
| Width | 82 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 72 qt |
| Fuel Tank | 30 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 570N EP |
| Type | Utility Tractor |
| Product Dimensions & Weight | |
|---|---|
| Length | 203.00 in |
| Width | 82.00 in |
| Height | 108.00 in |
| Weight | 14508.00 lbs |
