New Holland T7.230 with PLM Intelligence Tractor

T7210 Sidewinder N H

Product Description

New Holland T7.230 w P L M

MEET THE T7.230 WITH PLM INTELLIGENCE TRACTOR

If you want the advantages of PLM Intelligence in a long wheelbase tractor, this model is for you. The T7.230 w PLM Intelligence offers the same compact package of high horsepower like the classic T7.230 but with elevated features such as precision technology, larger fuel tank capacity, electro hydraulics, and two transmission options: Power Command or Auto Command.

TRANSMISSION OPTIONS

New Holland aerial view.png
Power Command transmission lets you select the gear speed you want by simply pushing up or downshift buttons, while Auto Command CVT benefits from four direct-drive point and further enhancing features such as, advanced double-clutch control, three adjustable target speeds, and active stop-start.

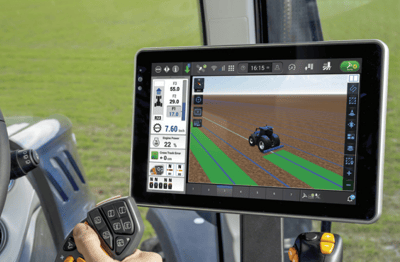

PLM INTELLIGENCE ADVANTAGE

New Holland PLM intelligence.png
New Holland's precision technology in the T7.230 PLM Intelligence tractor offers unparalleled connectivity and productivity. This allows for remote diagnostics, data sharing, and data-driven decision-making from any location, enhancing farm, fleet, and data management. You'll accomplish more daily, work smarter, and enjoy superior control over your entire fleet.

Specs

Engine
Aspiriation
Turbocharged/ air-to-air intercooled
Displacement
411 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT NEF
Gross HP
180 hp
Max EPM HP
225 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/4/411 in³
Performance
PTO HP
150 hp
Rear Linkage Cat.
Cat II/III
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
8318 lbs
Dimensions & Weight
Operating Weight
21054 lbs
Rear Axle Length (in. (mm))
15 & 98 in
Wheel base
113.5-117.2 in
Capacities
DEF
14 gal
Fuel Tank
123 gal
Hydraulic System
System Type
Closed Center Load Sensing (CCLS)
Standard Pump Flow
Electro Hydraulic
Main Pump Flow Standard/ MegaFlow option ( Range & Power Command)
32/40 gpm
Main Pump Flow Standard/ MegaFlow option (Auto Command)
40/45 gpm
Transmission
Auto Command
25 & 31 mph
PowerCommand ( full-powershift)
25-31 mph
Transmission
Powershift
Transmission Range
18x6
Make/Model
Model
T7.230 with PLM Intelligence
Type
Ag Tractor
Product Dimensions & Weight
Weight
21054.00 lbs
