New Holland T8.320 Tractor

N H T8320

Product Description

New Holland T8320.png

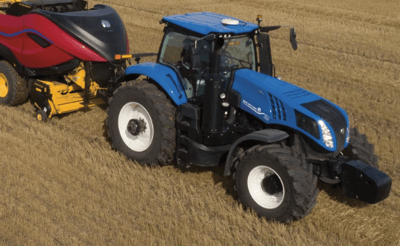

MEET THE T8.320 TRACTOR

The T8.320 with PLM Intelligence features an 8.7-liter Cursor 9 engine, delivering 250 rated hp with a boost up to 320 max hp. Its 136-inch wheelbase, one of the longest in its horsepower class, ensures greater stability, high transport speeds, easier ballasting, and more traction in heavy drawbar work. This combination makes it a powerful and versatile choice for demanding tasks.

CONNECTED MACHINE

New Holland T8 plm intelligence.png
Through PLM Intelligence, New Holland's T8 Series tractors offer unprecedented connectivity and remote viewing capabilities, allowing for real-time data sharing, remote diagnostics, and data-driven decision-making from any location. This technology enables farm managers and contractors to achieve greater efficiency and control over their operations, even from miles away, thanks to features like MyPLM Connect and the IntelliView 12 monitor.

ULTRA COMMAND TRANSMISSION

New Holland T8 transmission.png
The Ultra Command full-powershift transmission, offers unmatched mechanical efficiency and ease of control with speed options to suit every application. The CommandGrip handle provides fingertip access to automated features like Ground Speed Management (GSM), which optimizes performance and economy by managing engine and transmission speeds based on engine load, forward speed, and operator settings.

IN CAB CUSTOM CONTROL

The T8 Genesis models have been designed with the operators overall comfort and convenience in mind. For enhanced ergonomic operation the T8.320 features the adjustable SideWinder Ultra armrest—allowing up to eleven buttons to be personalized and adjusted per operator, CommandGrip handle—adjustments at your fingertips, steering wheel tilt and telescopic adjustments, intuitive climate controls, and best-in class seat offering for outstanding comfort.

New Holland T8 cab.png

Specs

Engine
Aspiriation
Single Turbocharger Wastegate
Displacement
531 in³
Emissions Tier (EPA)
Tier 4B Final w/ECOBlue
Engine Model
FPT Cursor 9
Max EPM HP
320 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/8.7 in³
Performance
PTO HP
205 hp
Rear Linkage Cat.
Cat III/IIIN
Cat III/IIIN Lift capacity 43" links / 38" links, 4" rear axle (lbs. (kg))
12900/14900 lbs
Cat III/IIIN Lift capacity 43" links / 38" links, 4.5" rear axle (lbs. (kg))
15900/19500 lbs
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
12800 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1 3/8" , 21 spine
Dimensions & Weight
MFD Tread Adjustability (in. (mm))
60-88 in
Operating Weight
22200 lbs
Rear Axle Dimension Standard/Optional (in. (mm))
4/4.5 in
Rear Axle Length (in. (mm))
120 in
Wheel base
136 in
Capacities
DEF
26 gal
Fuel Tank
163 gal Auto Command, 179 gal Ultra Command
Hydraulic System
System Type
Pressure-flow compensating (PFC)
Standard Pump Flow
59 gpm
Main Pump Flow Standard/ MegaFlow option (Auto Command)
59/86 gpm
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
18x4
Make/Model
Model
T8.320
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
22200.00 lbs
