New Holland T8.410 SmartTrax Tractor

New Holland T8410 Trax Tractor

Product Description

New Holland T8410 tracks.png

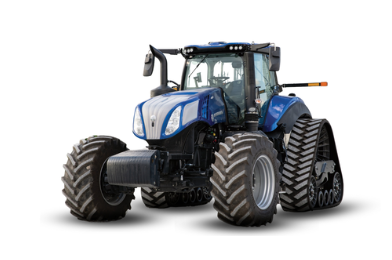

GENESIS T8.410 SMARTTRAX TRACTOR

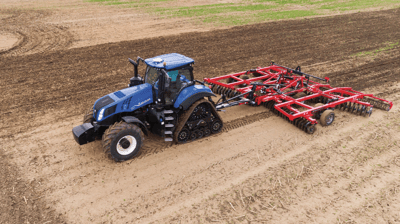

Take an already impressive tractor with a FPT Cursor 9 engine delivering 340 horses, and throw some tracks on it. The T8.410 SmartTrax takes it up a notch with the addition of tracks, flotation and traction are next level while a lighter footprint is left behind. Headland turns can be executed at full power and even a tighter radius without creating a berm or damaging the soil. Detailed modifications have been made to the transmission and driveline to ensure maximum power and torque can be transmitted to the track for dependable performance in the most demanding applications.

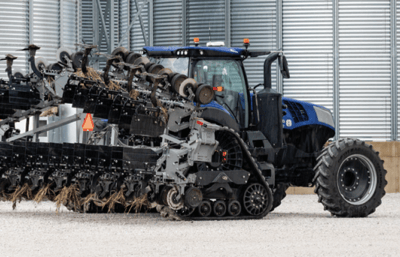

SMARTTRAX

New Holland T8410ST tractor.png

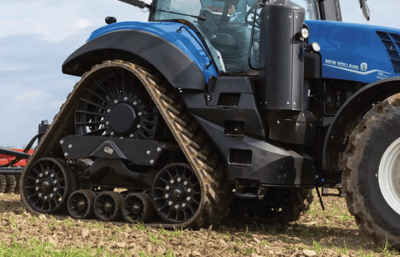

SmartTrax can be fitted with tracks of 16, 18, 21, 24 and 30-inch widths, so from row crop to broad acre farming, there’s a SmartTrax option for your needs. Track settings range from 76 up to 152 inches, allowing use beyond row crop applications.

HYDRAULIC POWER

New Holland smarttrax.png
Fitted with an advanced Closed Center Load Sensing hydraulic system as standard. 59 gpm (223.3 L) is the standard flow, which is enough to power the majority of farming applications. For the most hydraulically demanding customers, the MegaFlow option offers an impressive 86 gpm (325.5 Lpm) of flow. If that wasn’t enough, New Holland has engineered the CCLS system to operate at peak efficiency.

TOP-OF-THE-LINE FEATURES

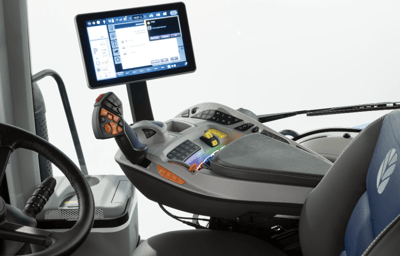

  • SideWinder Ultra armrest—hosts key controls
  • Fully customizable IntelliView 12 monitor
  • CommandGrip handle—fingertip access to automated features
  • Fully integrated PLM Intelligence—farm, fleet, and data management
  • Optional Auto Command continuous variable transmission
  • Optional Blue Power Exclusive edition with Auto Command option
  • Available in multiple cab configurations
New Holland T8 cab.png

Specs

Engine
Aspiriation
Single Turbocharger w/eVGT (variable geometry turbo)
Displacement
531 in³
Emissions Tier (EPA)
Tier 4B Final w/ECOBlue
Engine Model
FPT Cursor 9
Max EPM HP
409 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/8.7 in³
Performance
PTO HP
290 hp
Rear Linkage Cat.
Cat IVN/III
Cat HD IVN/III, 5" rear axle (lbs. (kg))
19900 lbs
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
12800 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1 3/8" , 21 spine
Dimensions & Weight
Operating Weight
35788 lbs
Wheel base
140 in
Capacities
DEF
26 gal
Fuel Tank
163 gal Auto Command, 179 gal Ultra Command
Hydraulic System
System Type
Pressure-flow compensating (PFC)
Standard Pump Flow
59 gpm
Main Pump Flow Standard/ MegaFlow option (Auto Command)
59/86 gpm
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
18x4
Make/Model
Model
T8.410 SmartTrax
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
35788.00 lbs
