New Holland T8.435 SmartTrax Tractor

New Holland T8435 T R A X

Product Description

New Holland T8435 tracks.png

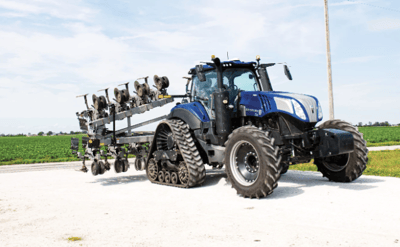

GENESIS T8.435 SMARTTRAX TRACTOR

The New Holland T8.435 SmartTrax tractor is a state-of-the-art agricultural machine that offers up to 396 HP, a spacious ergonomic cab, and connectivity options including PLM technology allowing precision farming applications such as auto-guidance, variable rate control, and data management. Its advanced features, powerful engine, SmartTrax system, and integrated technology make it an excellent choice for farmers looking to enhance productivity and profitability while minimizing environmental impact.

STANDARD PLM INTELLIGENCE

New Holland T8 plm intelligence (2).png
Through PLM Intelligence, New Holland's T8 Series tractors offer unprecedented connectivity and remote viewing capabilities, allowing for real-time data sharing, remote diagnostics, and data-driven decision-making from any location. This technology enables farm managers and contractors to achieve greater efficiency and control over their operations, even from miles away, thanks to features like MyPLM Connect and the IntelliView 12 monitor.

UNLIMITED COMFORT AND CONVENIENCE

New Holland T8 cab.png
Better visibility. Enhanced comfort. Customizable controls. Intuitive simplicity. They all come together in the GENESIS T8.435 SmartTrax with PLM Intelligence cab, available in multiple configurations offering levels of comfort features, integrated technology and suspension to best suit your needs.

TOP-OF-THE-LINE FEATURES

  • SideWinder Ultra armrest—hosts key controls
  • Fully customizable IntelliView 12 monitor
  • CommandGrip handle—fingertip access to automated features
  • Fully integrated PLM Intelligence—farm, fleet, and data management
  • Optional Auto Command continuous variable transmission
  • Optional Blue Power Exclusive edition with Auto Command option
New Holland PLM Intelligence.png

Specs

Engine
Aspiriation
Single Turbocharger w/eVGT (variable geometry turbo)
Displacement
531 in³
Emissions Tier (EPA)
Tier 4B Final w/ECOBlue
Engine Model
FPT Cursor 9
Max EPM HP
435 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/8.7 in³
Performance
PTO HP
315 Auto Command, 345 Ultra Command
Rear Linkage Cat.
Cat HD IVN/III
Cat HD IVN/III, 5" rear axle (lbs. (kg))
19900 lbs
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
12800 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1 3/8" , 21 spine
Dimensions & Weight
Operating Weight
35788 lbs
Wheel base
140 in
Capacities
DEF
26 gal
Fuel Tank
163 gal Auto Command, 179 gal Ultra Command
Hydraulic System
System Type
Pressure-flow compensating (PFC)
Standard Pump Flow
59 gpm
Main Pump Flow Standard/ MegaFlow option (Auto Command)
59/86 gpm
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
21x5
Make/Model
Model
T8.435 SmartTrax
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
35788.00 lbs
