New Holland T9.470 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

New Holland T9.470.png

T9.470 WITH PLM INTELLIGENCE

The all new T9.470 row crop frame model delivers the power, size and lift capacity to take on mammoth jobs. Equipped with a Fiat 13L engine the T9.470 delivers industry leading peak horsepower ranging from 425-467 hp. Paired with two intuitive New Holland transmission choices – the traditional Ultra Command full powershift transmission or the Auto Command Continuous Variable Transmission (CVT). Share information with your preferred providers, perform diagnostics remotely and make data-driven decisions related to your operations with PLM intelligence. Productivity at a superior level of control.

SOPHISTICATED TECHNOLOGY

New Holland T9 PLM.png

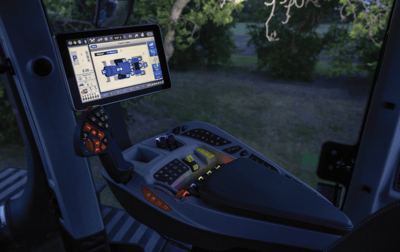

The T9 Series with PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

THE RIGHT BALANCE

New Holland T9 balance.png

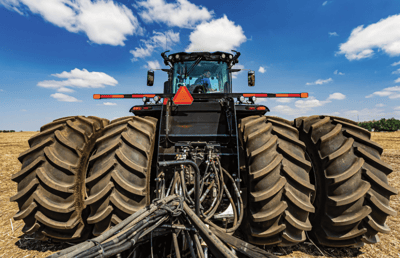

Performance, fuel efficiency, soil compaction, and productivity can all be compromised without the advanced control and efficiency offered by the T9 Series tractors. The Ultra Command full powershift transmission offers enhanced strength and control, a Hi-Lo dual power is fitted to gear 16, allowing you to quickly increase maximum transport speed from 19 to 25 mph. With a hitch lift capacity of 21, 903 lbs., a Fiat 13L turbocharged engine, and a robust articulated tri-point chassis, these tractors put more power exactly where it belongs.

PERFORMANCE CAB

The T9 tractor offers all-day comfort with the exclusive four-point Comfort Ride cab suspension, which expertly manages front-to-back, side-to-side, and up-and-down motions to keep you comfortable throughout the workday. The cab design also provides superior visibility in all directions, with a sloped hood for enhanced forward visibility and an unobstructed view of the drawbar for easy implement attachment. Choose from two comfort and convenience packages, each featuring exceptional seating and in-cab amenities for an optimal operator experience.

New Holland T9 cab (1).png

Specs

Engine
Aspiriation
SST electronically variable geometry turbocharger (eVGT) with air-to-air after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13
Gross HP
467 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
409 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
20000 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
56000 lbs
Wheel base
148 in
Capacities
DEF
42 gal
Fuel Tank
310 gal
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.470
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
40800.00 lbs
