New Holland T9.520 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

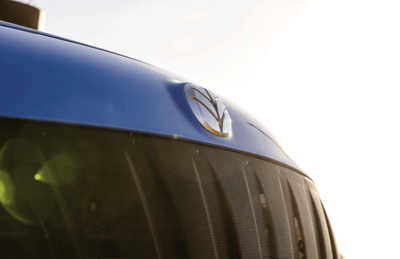

New Holland T9 front end.png

T9.520 WITH PLM INTELLIGENCE TRACTOR

The T9.520 row crop frame model is built to handle massive tasks with its impressive power, size, and lift capacity. Featuring a Fiat 13L engine, it offers top-tier peak horsepower between 475 and 522 hp. Choose between the traditional Ultra Command full powershift transmission or the Auto Command Continuously Variable Transmission (CVT) for optimal performance. With PLM intelligence, you can easily share data with your preferred service providers, perform remote diagnostics, and make informed operational decisions. Experience exceptional productivity with advanced control.

PERFORMANCE. EFFICIENCE. PRODUCTIVITY.

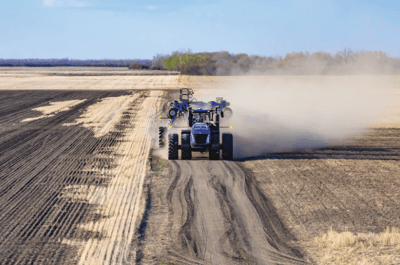

New Holland T9 balance (2).png
Performance, fuel efficiency, soil compaction, and productivity can all be compromised without the advanced control and efficiency offered by the T9 Series tractors. The Ultra Command full powershift transmission offers enhanced strength and control, a Hi-Lo dual power is fitted to gear 16, allowing you to quickly increase maximum transport speed from 19 to 25 mph. With a hitch lift capacity of 21, 903 lbs., a Fiat 13L turbocharged engine, and a robust articulated tri-point chassis, these tractors put more power exactly where it belongs.

INSIDE THE CAB

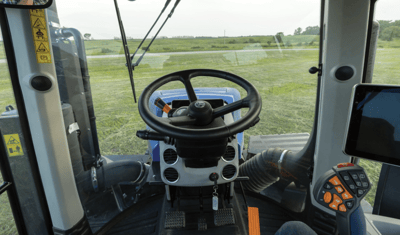

New Holland T9 cab (2).png
T9 tractor offer all-day comfort with the exclusive four-point Comfort Ride cab suspension, which expertly manages front-to-back, side-to-side, and up-and-down motions to keep you comfortable throughout the workday. The cab design also provides superior visibility in all directions, with a sloped hood for enhanced forward visibility and an unobstructed view of the drawbar for easy implement attachment. Choose from two comfort and convenience packages, each featuring exceptional seating and in-cab amenities for an optimal operator experience.

SOPHISTICATED TECHNOLOGY

PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

New Holland PLM Intelligence.png



Specs

Engine
Aspiriation
SST electronically variable geometry turbocharger (eVGT) with air-to-air after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13
Gross HP
522 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
462 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
21903 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
56000 lbs
Wheel base
148 in
Capacities
DEF
42 gal
Fuel Tank
310 gal
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.520
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
40800.00 lbs
