New Holland T9.580 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

New Holland T9 cab (4).png

T9.580 WITH PLM INTELLIGENCE

This powerful, 4-wheel-drive tractor featuring a FPT Cursor 13 engine delivers 578 horses and 516 PTO horsepower. Its standard equipped with PLM Intelligence which provides the ability to share information with your preferred providers, perform diagnostics remotely, and make date-driven decisions related to your operations from any location. Transferring dynamic loads and maximum pulling capacity is reached with robust articulating chassis and the standard category 4 drawbar.

THE RIGHT BALANCE

New Holland T9 balance (4).png
Performance, fuel efficiency, soil compaction, and productivity can all be compromised without the advanced control and efficiency offered by the T9 Series tractors. The Ultra Command full powershift transmission offers enhanced strength and control, a Hi-Lo dual power is fitted to gear 16, allowing you to quickly increase maximum transport speed from 19 to 25 mph. With a hitch lift capacity of 21, 903 lbs.(22,250 lbs. SmartTrax model), a Fiat 13L turbocharged engine, and a robust articulated tri-point chassis, these tractors put more power exactly where it belongs.

PLM INTELLIGENCE

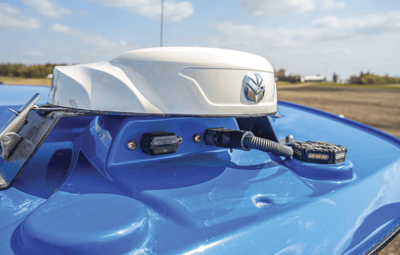

New Holland T9 PLM (2).png
The T9 Series with PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

TRAX ADVANTAGE

A larger footprint provides better flotation and creates less rut in the soil, that's saying a lot for farmers. The powerful T9.580 tractor is now available in a SmartTrax model. Features include automatic track tensioning, suspension and oscillating roller wheels for a smooth ride, longer belt life, and even wear. Clear hubcaps simplify maintenance, and various track belt options meet diverse needs.

New Holland T9.655 trax.png

Specs

Engine
Aspiriation
SST electronically variable geometry turbocharger (eVGT) with air-to-air after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13
Gross HP
578 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
516 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
21903 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
56000 lbs
Wheel base
148 in
Capacities
DEF
42 gal
Fuel Tank
310 gal
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.580
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
40800.00 lbs
