New Holland T9.615 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

New Holland T9.470.png

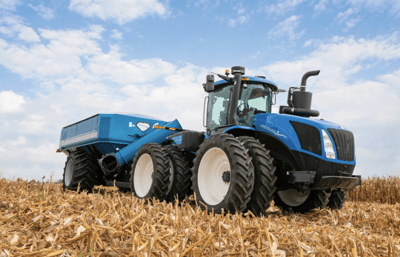

T9.615 WITH PLM INTELLIGENCE

Coming in at 614 peak horsepower the T9.615 features the FPT Curser 13 two-stage turbo engine. Pair with the standard Ultra Command full powershift transmission or choose the Auto Command Continuously Variable Transmission (CVT) for limitless performance. This wide frame model has a hitch lift capacity of 22,750 pounds and can be equipped with multiple hitch options such as CAT IV–N quick-hitch rear linkage or a 20-spline, 1000-rpm PTO option.

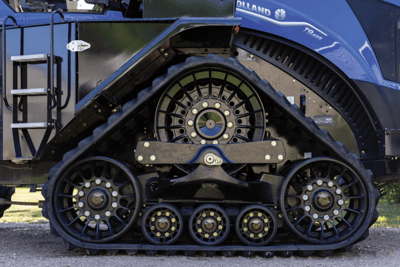

TRAX ADVANTAGE

New Holland T9.655 trax.png
A larger footprint provides better flotation and creates less rut in the soil, that's saying a lot for farmers. The powerful T9.615 tractor is now available in a SmartTrax model. Features include automatic track tensioning, suspension and oscillating roller wheels for a smooth ride, longer belt life, and even wear. Clear hubcaps simplify maintenance, and various track belt options meet diverse needs.

MONSTER POWER. TOTAL CONTROL

New Holland T9 balance (5).png
The industry-exclusive, optional Auto Command CVT enhances productivity with greater versatility and efficiency, offering seamless speed control from 3.0 feet per minute to 25 mph with no steps or range changes. It provides precise speed regulation, active stop-start functionality, and automated efficiency, ensuring optimal performance for any task, including slow-speed operations and high-value crop management.

SOPHISTICATED TECHNOLOGY

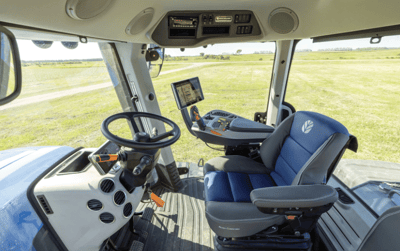

The T9 Series with PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

New Holland T9 cab (4).png

Specs

Engine
Aspiriation
Two-stage turbo-charged, air-to-water inter-cooled, air-to-water after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13 Two-stage Turbo
Gross HP
614 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
537 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
22750 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
60000 lbs
Wheel base
154 in
Capacities
DEF
66 gal
Fuel Tank
440 gal
Transmission
Auto Command
Optional
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.615
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
46340.00 lbs
