New Holland T9.655 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

New Holland T9.655 tractor.png

T9.655 WITH PLM INTELLIGENCE

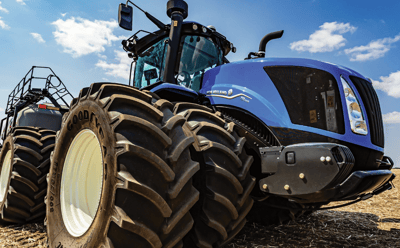

The T9.655 tractor delivers up to 61 additional horsepower with the FPT Cursor 13 two-stage turbo engine when needed to maintain performance and optimize fuel efficiency via energy power management. Delivering more power and torque according to the load on the transmission during hydraulic, PTO, and transport. When you're working with that kind of power keeping it on the ground is key. T9's robust articulated tri-point chassis, heavy-duty axles, and robust hitch lift capacities ensure precision ground-following and smooth transfer of power to the ground. You’ll notice the difference immediately, whether seeding, leveling, cultivating, or applying nutrients.

TOUGH ULTRA COMMAND TRANSMISSION

New Holland T9.655 ST (1).png
The Ultra Command full powershift transmission is now tougher and provides improved control with the CommandGrip handle for manual push-button shifts and automated Ground Speed Management (GSM). GSM optimizes performance by using data on engine load, forward speed, and operator settings to maintain a fixed forward speed, enhancing productivity and reducing fuel consumption and operator fatigue.

SOPHISTICATED TECHNOLOGY

New Holland T9 cab (4).png
The T9 Series with PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

TRAX UPGRADE

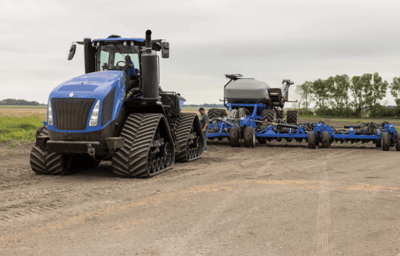

A larger footprint provides better flotation and creates less rut in the soil, that's saying a lot for farmers. The powerful T9.655 tractor is now available in a SmartTrax model. Features include automatic track tensioning, suspension and oscillating roller wheels for a smooth ride, longer belt life, and even wear. Clear hubcaps simplify maintenance, and various track belt options meet diverse needs.

New Holland T9 smart trax logo.png

Specs

Engine
Aspiriation
Two-stage turbo-charged, air-to-water inter-cooled, air-to-water after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13 Two-stage Turbo
Gross HP
656 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
537 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
22750 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
67000 lbs
Wheel base
154 in
Capacities
DEF
66 gal
Fuel Tank
440 gal
Transmission
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.655
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
50328.00 lbs
