New Holland T9.700 Tractor with PLM Intelligence

N H T9 Tractor

Product Description

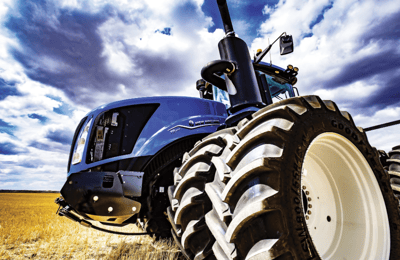

New Holland T9.700 tractor.png

T9.700 WITH PLM INTELLIGENCE

Experience unprecedented technology and engine power with the T9.700, the most powerful tractor in the T9 lineup. Boasting an impressive 22,750 pounds of lift capacity for dominant performance. Designed to elevate your capabilities, this machine features the Fiat 13L two-stage turbo engine paired with the Ultra Command full powershift transmission. Enjoy the convenience of the CommandGrip handle for effortless manual push-button shifts and automated Ground Speed Management (GSM).

OPERATE IN ULTIMATE COMFORT

New Holland T9 cab (2).png
This T9 tractor offers all-day comfort with the exclusive four-point Comfort Ride cab suspension, which expertly manages front-to-back, side-to-side, and up-and-down motions to keep you comfortable throughout the workday. The cab design also provides superior visibility in all directions, with a sloped hood for enhanced forward visibility and an unobstructed view of the drawbar for easy implement attachment. Choose from two comfort and convenience packages, each featuring exceptional seating and in-cab amenities for an optimal operator experience.

SOPHISTICATED TECHNOLOGY

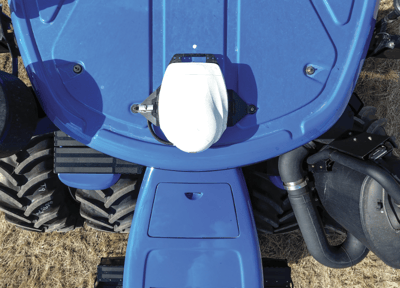

New Holland T9.700 plm.png
The T9 Series with PLM Intelligence offers sophisticated features easily accessed via the SideWinder Ultra armrest, housing all key controls including throttle, transmission, and hydraulics, with customizable buttons to suit operator preferences. The IntelliView 12 monitor enhances control, dividing the screen into customizable sections for tractor settings, run screens, and key operating parameters, while unmatched connectivity allows for remote diagnostics and data-driven decisions from any location.

SMARTTRAX

A larger footprint provides better flotation and creates less rut in the soil, that's saying a lot for farmers. The powerful T9.700 tractor is now available in a SmartTrax model. Features include automatic track tensioning, suspension and oscillating roller wheels for a smooth ride, longer belt life, and even wear. Clear hubcaps simplify maintenance, and various track belt options meet diverse needs.

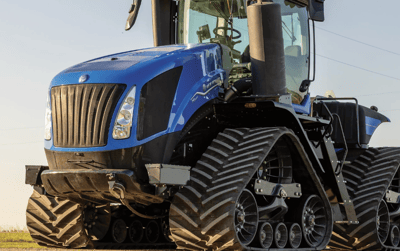

New Holland T9.655 smarttrax.png

Specs

Engine
Aspiriation
Two-stage turbo-charged, air-to-water inter-cooled, air-to-water after-cooled
Displacement
787 in³
Emissions Tier (EPA)
Tier 4B/Final Stage V
Engine Model
FPT Cursor 13 Two-stage Turbo
Gross HP
699 hp
No. Of Cylinders
6
No. of Cylinders/ Valve/ Displacement
6/24/787 in³
Performance
PTO HP
537 hp
Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg))
22750 lbs
Front PTO and shaft size (in. (mm))
1000 rpm, 1.75 in
Dimensions & Weight
Operating Weight
67000 lbs
Wheel base
154 in
Capacities
DEF
66 gal
Fuel Tank
440 gal
Transmission
Transmission
Powershift
Transmission Range
16F/2R
Make/Model
Model
T9.700
Type
Ag Tractor
Product Dimensions & Weight
Length
0.00 in
Width
0.00 in
Height
0.00 in
Weight
50328.00 lbs
