Product Description

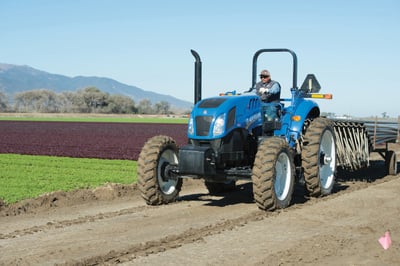

THE TS6.120 TRACTOR
The TS6.120 model gives you the choice of the VisionView cab or ROPS platform and comes standard with 4WD. The 4-cylinder diesel engine is coupled with the 8 x 8 synchronized hydraulic shuttle transmission to provide 119 horsepower. Engine power is not alone in strength, the standard 3,735-pound lift capacity is a great match for most implements. Increase it to 5,499 pounds by adding one optional auxiliary lift cylinder, or add two lift cylinders to increase to 7,326-pound lift capacity.
Specs
Engine | |
---|---|
Displacement | 274 cu in |
Emissions Tier (EPA) | Tier 4B |
Engine Model | FPT NEF |
Gross HP | 119 hp |
No. Of Cylinders | 4 |
No. of Cylinders/ Valve/ Displacement | 4/16/274 cu in |
Performance | |
---|---|
PTO HP | 102 hp |
Dimensions & Weight | |
---|---|
Height | 110.2 in |
Length | 187.4 in |
Operating Weight | 17196 lbs |
Wheel base | 100.4 in |
Capacities | |
---|---|
DEF | 7.9 gal |
Fuel Tank | 57.5 gal |
Hydraulic System | |
---|---|
System Type | Fixed displacement pumps (steering, implement, aux) with combining/diverter valve |
Transmission | |
---|---|
Transmission | Power Shuttle |
Transmission Range | 8x8 |
Make/Model | |
---|---|
Model | TS6.120 |
Type | Ag Tractor |
Product Dimensions & Weight | |
---|---|
Length | 184.70 in |
Width | 0.00 in |
Height | 117.30 in |
Weight | 17196.00 lbs |
