New

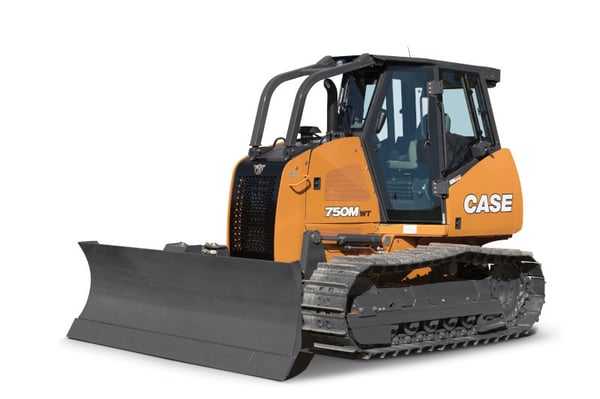

Case Construction 750M Dozer
New
Case Construction 750M Dozer
Manufacturers:
- 96-inch blade width
- 92 engine horsepower
- 20,228 lb. rated operating weight
Product Description
MEET THE 750M DOZER
Best-in-class drawbar pull and horsepower in an easy-to-transport footprint and weight class — the 750M is a practical and versatile dozer capable of performing finish grading on residential and commercial sites, as well as handling more intensive earthwork on larger developments. The dozer is available in numerous track and blade configurations to meet specific applications — all compatible with a full range of machine control/grade control systems and factory fit option.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | Open Cab, Enclosed Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Displacement | 207.5 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Gross HP | 96 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Ground Pressure | 4.04-5.36 psi |
| Travel Speed | 5.2 mph |
| Power Type | Diesel |
| Driveline | Track |
| Capacities | |
|---|---|
| Hydraulic Tank | 26 gal |
| Fuel Tank | 50 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 41010 lb (using standard track chain) |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 750M |
| Type | Crawler Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 201.00 in |
| Width | 98.00 in |
| Height | 109.00 in |
| Weight | 20228.00 lbs |
