Bobcat E32 R-Series Compact Excavator
New
Bobcat E32 R-Series Compact Excavator
Manufacturers:
- 10.1 ft. max dig depth
- 24.8 engine horsepower
- 7,403 lb. operating weight
Product Description

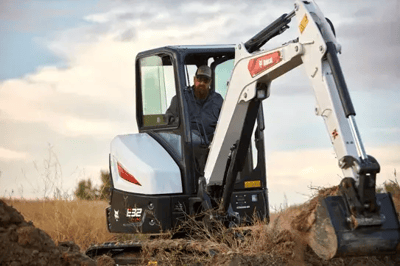

MEET THE E32 EXCAVATOR

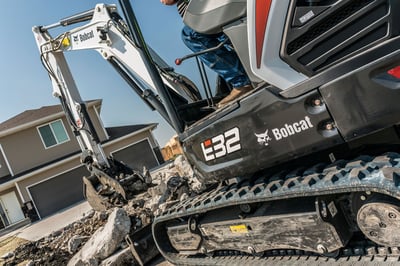

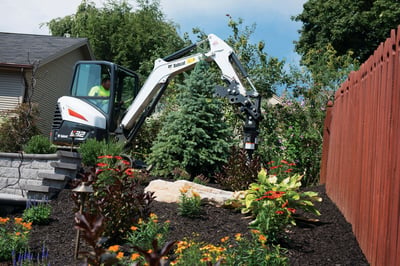

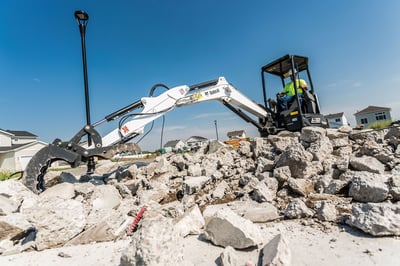

The Bobcat E32 compact (mini) excavator packs powerful performance and maneuverability into a conventional tail swing design. Narrower than the E35, this machine is ideal if you frequently work around areas with space restrictions such as doors or gates. Boost your working range with the long arm option or a clamp-ready extendable arm option.
ARM CONFIGURATIONS
BIG ON HYDRAULICS
IN-TRACK SWING FRAME
Get closer to your work. When digging in an offset position, the swing castings and cylinders remain within the tracks to help you work in small spaces. You can dig flush against an obstacle, minimizing the chances of inadvertent contact, Ultimately, you can reduce operating costs of repairs to your machine or adjacent structures.
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Optional |
| Angle Blade | N/A |
| Cab Enclosure | Optional |
| Tail Swing Type | Conventional |
| Power Type | Diesel |
| Engine | |
|---|---|
| Emissions Tier (EPA) | Tier 4 |
| Gross HP | 24.8 hp |
| Turbocharged Engine | No |
| Performance | |
|---|---|
| Arm Digging Force | 4074-4690 lbf |
| Boom Swing Angle Left/Right | Boom Swing Left: 75 degrees, Boom Swing Right: 55 degree |
| Bucket Digging Force | 6968-7284 lbf |
| Lift Capacity | 2537-2975 lb |
| Travel Speed | 2.9 mph |
| Max Dig Depth | 121.2-153.2 in |
| Max Dump Height | 132-154.5 in |
| Power Type | Diesel |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Height with Operator Cab | 95.6-96.2 in |
| Operating Weight | 7183-8497 lb |
| Reach @ Maximum Height | 194.5-225.3 in |
| Size Class | 1-4 Ton |
| Weight Class | 3.2-3.9 t |
| Capacities | |
|---|---|
| Fuel Tank | 13.7-14 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 16.9 gal/min |
| Auxiliary Pressure | 2987 psi |
| Make/Model | |
|---|---|
| Model | E32 |
| Type | Compact Excavator |
| Size Class | 1-4 Ton |
| Product Dimensions & Weight | |
|---|---|
| Length | 183.70 in |
| Width | 61.80 in |
| Height | 96.20 in |
| Weight | 7403.00 lbs |
Related Products
Model Inventory

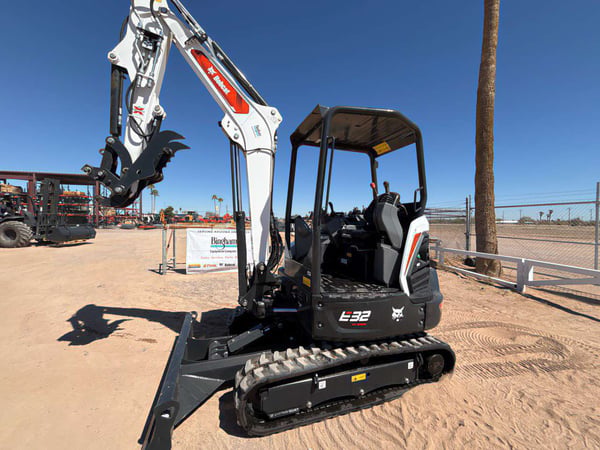

Stock #: 117318
Model: E32
- Low hour machine; High value!
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10.1 ft
- Tail Swing (standard): Conventional

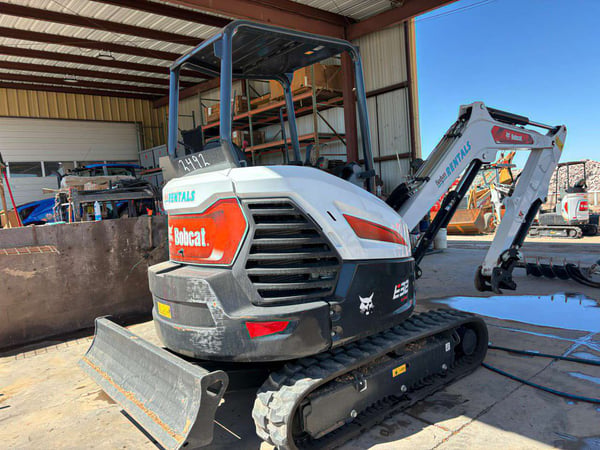

Stock #: 113788
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- Extended Warranty until 03-29-2028

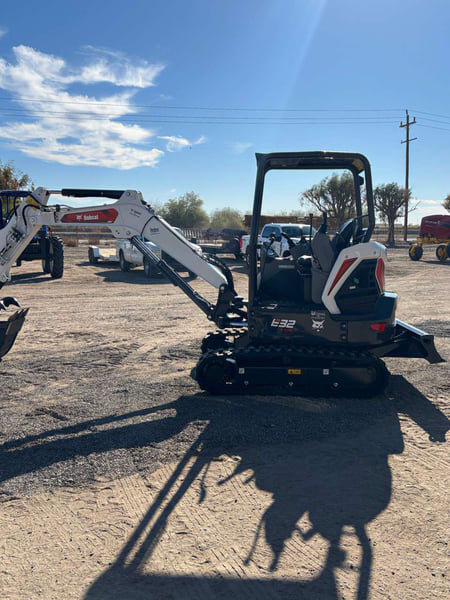

Stock #: 115527
Model: E32
- Low hour machine; High value!
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10.1 ft
- Tail Swing (standard): Conventional

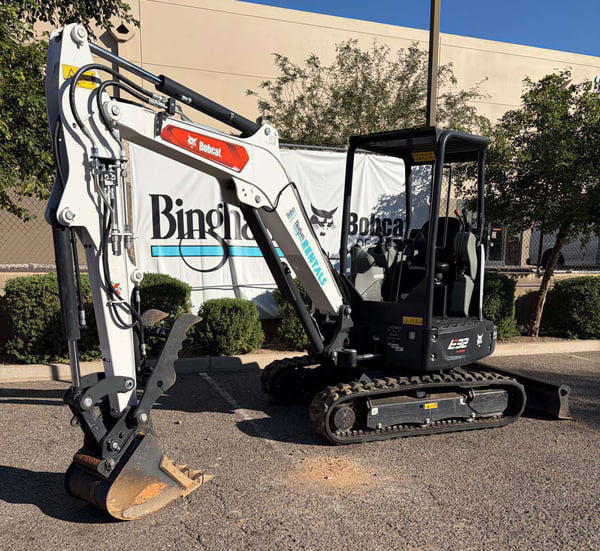

Stock #: 117344
Model: E32
- Low hour machine; High value!
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10.1 ft
- Tail Swing (standard): Conventional
On Lot: Bobcat of Phoenix

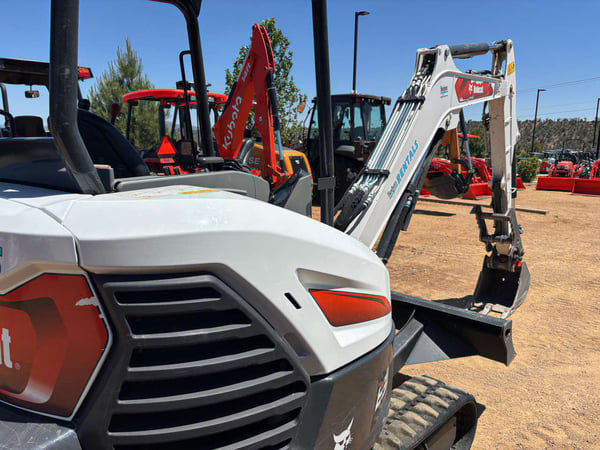

Stock #: 117295
Model: E32
- Low hour machine; High value!
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10.1 ft
- Tail Swing (standard): Conventional

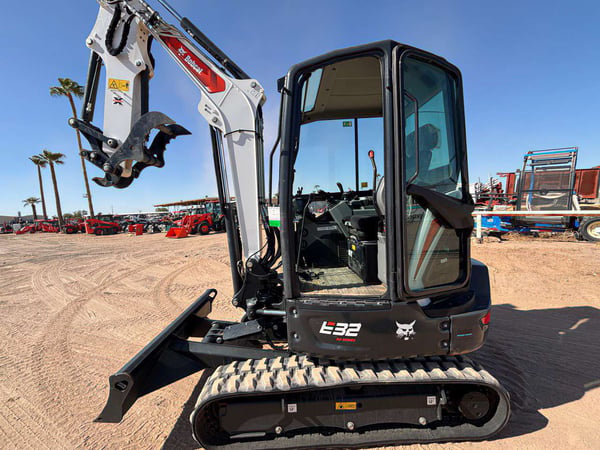

Stock #: 113790
Model: E32
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
Stock #: 122285
Model: E32
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10ft 1 ft
- Tail Swing (standard): Conventional

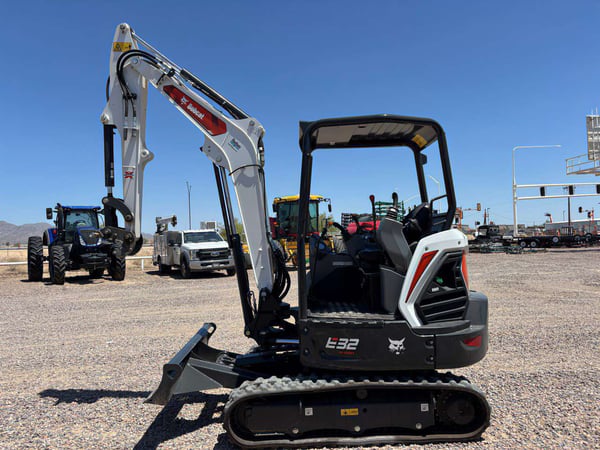

Stock #: 122286
Model: E32
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10ft 1 ft
- Tail Swing (standard): Conventional
Stock #: 122287
Model: E32
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10ft 1 ft
- Tail Swing (standard): Conventional

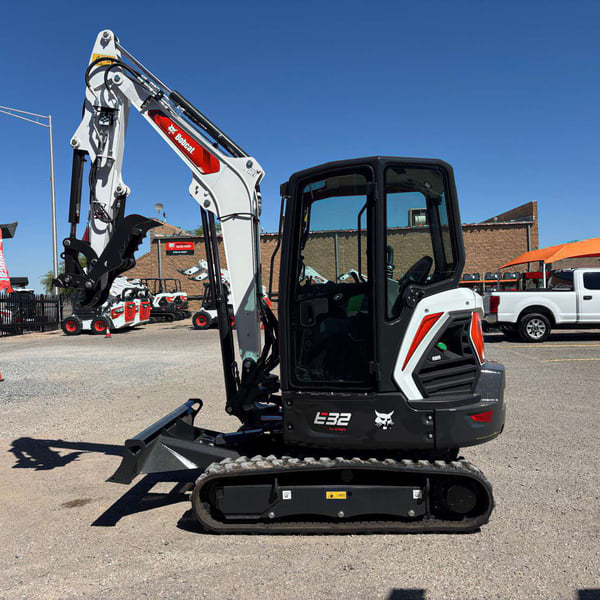

Stock #: 125866
Model: E32
- 24.8 Horsepower
- Weight: 7,403 lbs
- Dig Depth: 10ft 1 ft
- Tail Swing (standard): Conventional

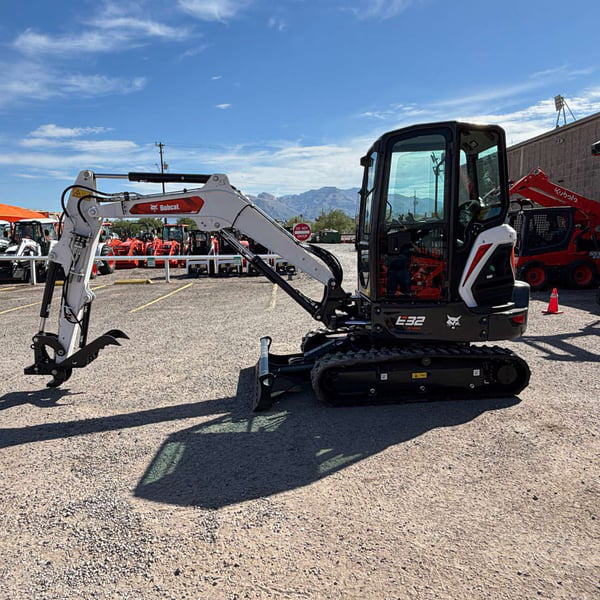

Stock #: 125867
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower

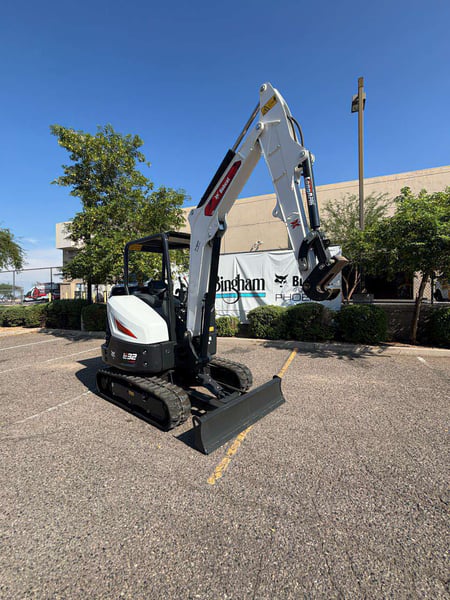

Stock #: 124448
Model: E32
- Low hour machine; High value!
- Compact size; maximum versatility
- 24.8 Horsepower
On Lot: Bobcat of Phoenix
Stock #: 124447
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 12-25-2027

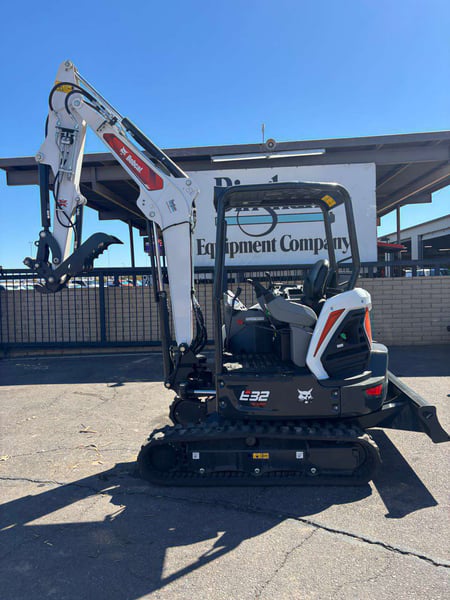

Stock #: 117319
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 04-29-2027
Stock #: 113807
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 11-26-2026
Stock #: 117883
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower
Stock #: 117077
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 06-22-2027
Stock #: 117885
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower
Stock #: 117294
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 04-07-2027
Stock #: 117881
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower

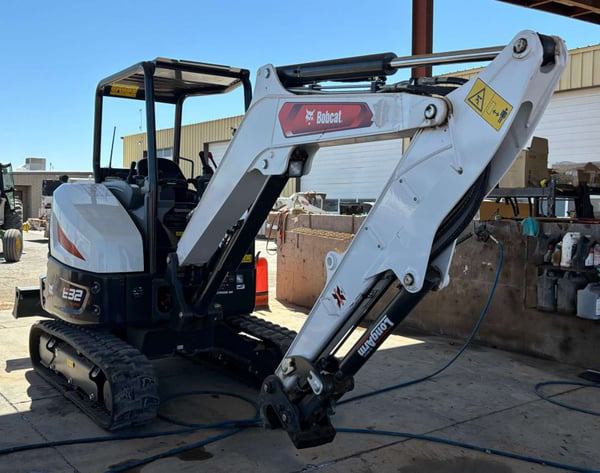

Stock #: 117882
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower
Stock #: 117343
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 12-10-2026
Stock #: 114676
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 10-23-2026

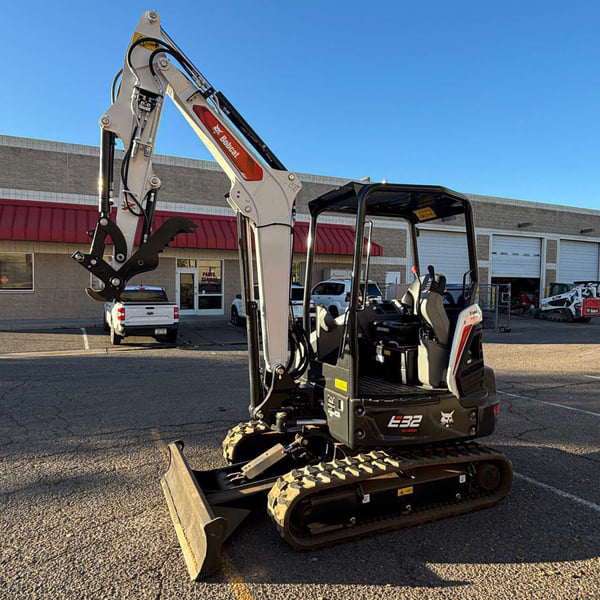

Stock #: 117075
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 03-26-2027

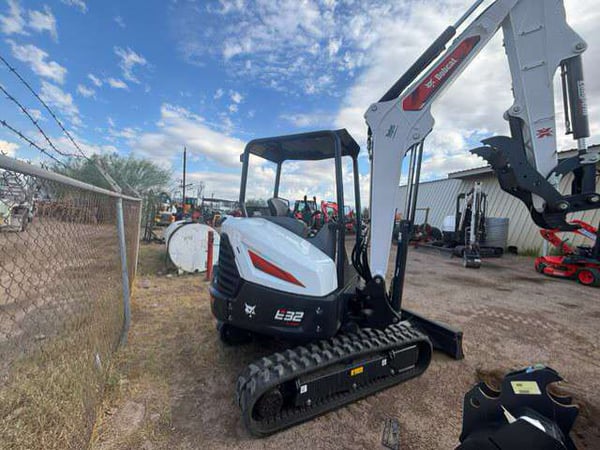

Stock #: 124429
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 11-10-2027
Stock #: 125807
Model: E32
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 24.8 Horsepower

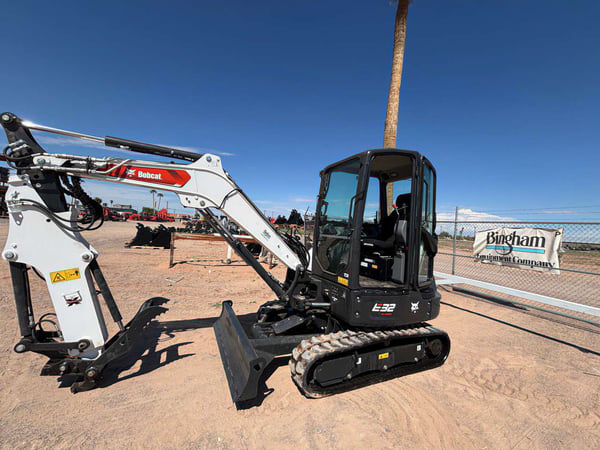

Stock #: 125845
Model: E32
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
Stock #: 124428
Model: E32
- Compact size; maximum versatility
- 24.8 Horsepower
- OEM Warranty until 12-08-2027

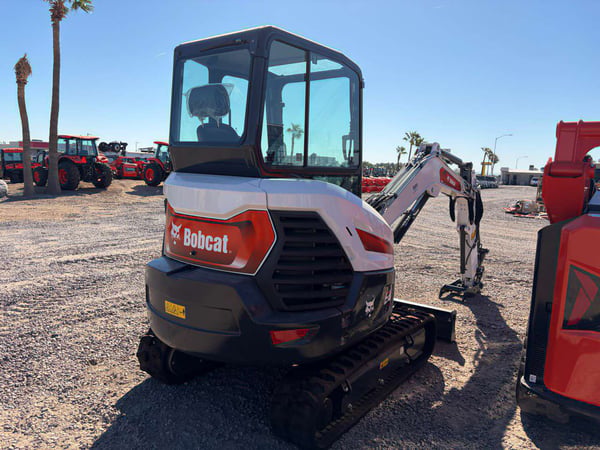

Stock #: 127340
