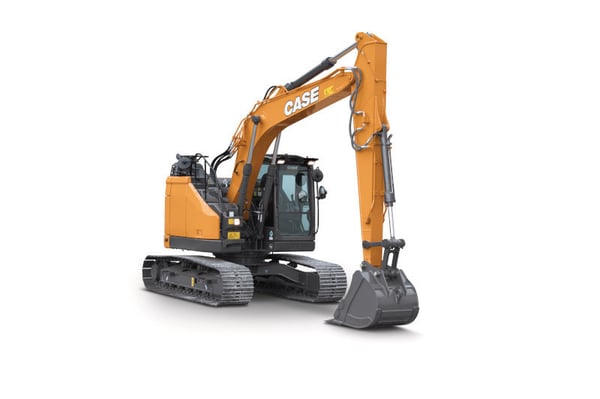

Case Construction CX145D SR Large Excavator
New
Case Construction CX145D SR Large Excavator
Manufacturers:
- 18' 1" max dig depth
- 102 engine horsepower
- 32,100 lb. operating weight
Product Description
MEET THE CX145D ST EXCAVATOR
Designed to provide ample digging and lifting power in a small footprint, the CX145D SR features a minimum-swing-radius design for work along roadsides and in more confined areas. With an operating weight of 32,100 pounds and a 102 HP Tier 4 Final engine, the CX145D SR offers powerful breakout force and lift capacity while still delivering the hydraulic precision and responsiveness expected from CASE D Series excavators. This model is also now available with OEM-Fit 2D and 3D machine control solutions.
PICK YOUR POWER
SMARTER WORKING
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Standard |
| Cab Enclosure | Standard |
| Tail Swing | 5 ft |
| Operator Station | Open Cab, Enclosed Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Displacement | 183 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | Isuzu AM-4JJ1X |
| Gross HP | 102 hp |
| No. Of Cylinders | 4 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Arm Digging Force | 12600-15700 lb |
| Bucket Digging Force | 20200 lb |
| Ground Pressure | 5.2 psi |
| Lift Capacity | See full spec sheet |
| Travel Speed | 3.5 mph |
| Max Dig Depth | 18' 1" |
| Max Dump Height | 22' 9" |
| Max Reach | 30' 8" |
| Power Type | Diesel |
| Driveline | Track |
| Capacities | |
|---|---|
| Hydraulic Tank | 20 gal |
| Fuel Tank | 53 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Open center |
| Transmission | |
|---|---|
| Transmission | Hydraulic Drive |
| Make/Model | |
|---|---|
| Model | CX145D SR |
| Type | Large Excavator |
| Size Class | 12-20 Ton |
| Product Dimensions & Weight | |
|---|---|
| Length | 148.00 in |
| Width | 102.00 in |
| Height | 112.00 in |
| Weight | 32100.00 lbs |
