Name: Case Construction CX37C Mini Excavator
Brand: Case Construction
SKU: CX37C
Availability: InStock

Product Description

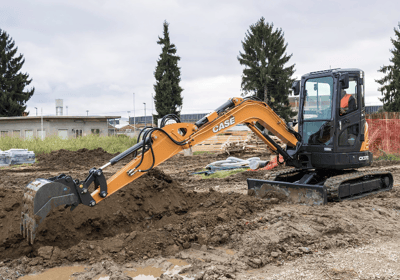

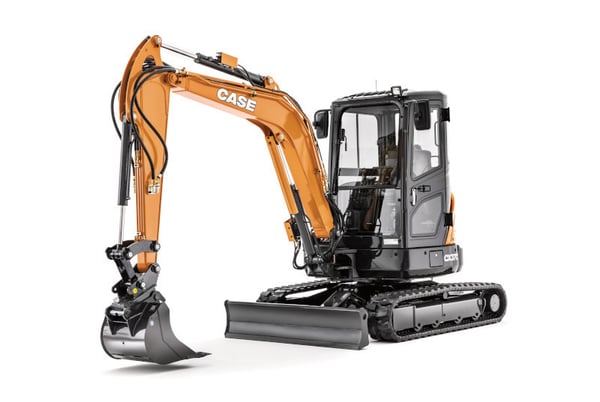

MEET THE CX37C EXCAVATOR

Those heading out to a job with nothing more than a half-ton pickup and trailer won’t find more available power or performance than the CASE CX37C mini excavator. At 7,990 lbs., this hard-nosed machine delivers big breakout force and can reach a dig depth of 10 ft. 3 in. You get standard auxiliary hydraulics and backfill blade. An optional angled blade is also available. The comfy cab offers great sightlines. And daily maintenance points are easily accessible, meaning productivity is always within reach.

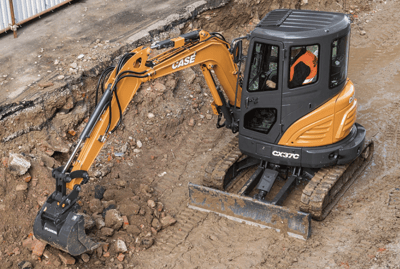

COMPACT VERSATILITY

Case Construction CX37C zero tailswing.png

The CX37C excavator's zero tailswing and adjustable offset boom provide exceptional maneuverability and precision, even in tight spaces. With auxiliary hydraulics, this machine supports a wide range of attachments, enhancing versatility on the job site.

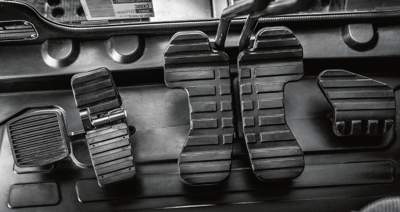

AUTO-SHIFT

The CX37C mini excavator automatically downshift to increase torque when traveling on slopes or in rough conditions, and then automatically shift back up on smooth terrain. This provides consistent speeds around a jobsite without the need for operator adjustment.

OPERATOR CUSTOMIZATION

Proportional thumb-roller controls allow for convenient operation of attachments, a pattern selector lets operators easily switch between SAE and ISO pattern changeover and 1- or 2-way flow combination auxiliary hydraulics give the operator the versatility to run a variety of attachments.

Specs

Additional Specs
Cab Enclosure	Optional
Tail Swing	2' 10"
Tail Swing Type	Zero
Operator Station	Open Cab
Power Type	Diesel

Engine
Displacement	100.2 cu in
Emissions Tier (EPA)	Tier 4
Engine Model	Yanmar 3TNV88F-ESHYB
Gross HP	24.4 hp
No. Of Cylinders	3

Performance
Arm Digging Force	3800-4390 lb
Boom Swing Angle Left/Right	75 degrees left/50 degrees right
Bucket Digging Force	6900 lb
Ground Pressure	4.83 psi
Lift Capacity	See full spec sheet
Travel Speed	2.6 mph
Max Dig Depth	10' 3"
Max Dump Height	11' 3"
Max Reach	15' 9"
Power Type	Diesel
Driveline	Track

Capacities
Hydraulic Tank	15.9 gal
Fuel Tank	10.5 gal

Hydraulic System
Hydraulic System	Gear

Transmission
Transmission	Hydrostatic (HST)

Make/Model
Model	CX37C
Type	Compact Excavator
Size Class	1-4 Ton

Product Dimensions & Weight
Length	189.00 in
Width	69.00 in
Height	98.00 in
Weight	8660.00 lbs
