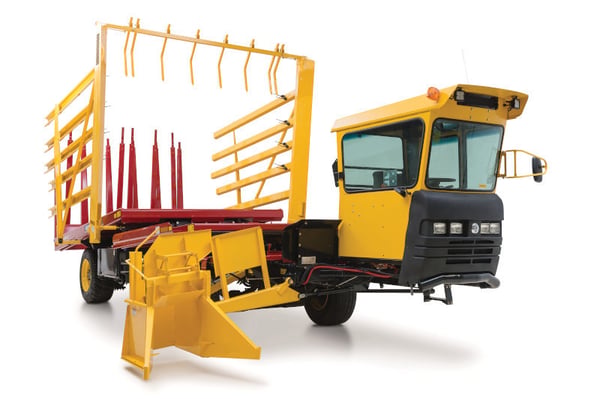

NEW HOLLAND STACKCRUISER 102
New Holland self-propelled Stackcruiser 102 bale wagon is one of two that allows you to handle both small square hay bales and large square bales. Creating stacks three bales wide, handling 14” x 18” or 16” x 18” bales, and offers a bale capacity of 161. With the option of adding the Mil-Stak to handle the largest bales. 3' x 3' or 3' x 4". A rocker switch gives you control of the two-speed rear axle with automatic locking rear differential to keep you moving in slippery or uneven conditions. Five-speed automatic transmission with lock-up torque converter provides excellent speed matching ability. First gear, slower ground speed for high-density crops and overdrive in fifth gear allowing fast 50-mph road transport.
Specs
| Engine | |
|---|---|
| Aspiriation | Turbocharged & after cooled |
| Capacities | |
|---|---|
| DEF | 12.4 gal (47 L) |
| Fuel Tank | 69 gal (261 L) |
| Hydraulic System | |
|---|---|
| Hydraulic System | Dual: open center and
closed center |
| Transmission | |
|---|---|
| Transmission | Automatic |
| Transmission Range | 5-Speed |
| Bale Wagon Specs | |
|---|---|
| Bale Capacity | 14 in x 18 in x 36-41 in: 161, 16 in x 18 in x 36-41 in: 161, 3 ft x 3 ft x 8 ft & 3 ft x 4 ft x 8 ft: 10-15 with Mil-Stak attachment |
| Bale Sizes capable - Height x Width x Length (in. (cm)) | 14 x 18 x 36-41 (35 x 46 x 91-104), 16 x 18 x 36-41 (41 x 46 x 91-104) |
| Bale Weight | 50-90 lbs |
| Loader Raised, Stabilizers at Widest Position (in. (cm)) | 136 (345) |
| Loader Raised, Stabilizers Off (in. (cm)) | 119 (302) |
| Maximum Power at Rated Speed (hp (kW)) | 190 (142) |
| Number of cylinders / displacement (cu. in. (L)) | 6 / 408 (6.7) |
| Optimum Length of Bale for Best Tie-Tier (in. (cm)) | 38 (97) [for 14 x 18 (35 x 46) bales], 40 (102) [for 16 x 18 (41 x 46) bales] |
| Rear Axle | 10 (25) @ diff. housing, 6 (15) at leaf spring U-bolts |
| Make/Model | |
|---|---|
| Model | Stackcruiser 102 |
| Type | Bale Wagon |
| Product Dimensions & Weight | |
|---|---|
| Length | 375.00 in |
| Width | 164.00 in |
| Height | 176.00 in |
| Weight | 14969.00 lbs |
