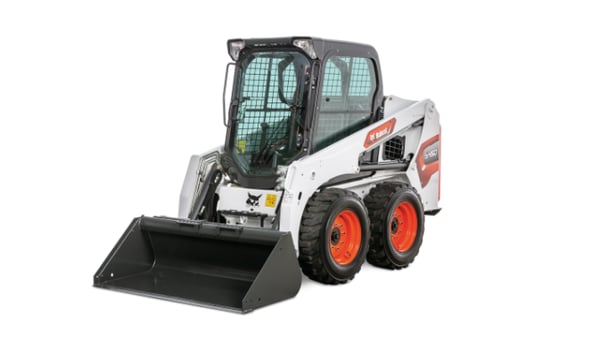

Bobcat S450 M3-Series Skid-Steer Loader

Bobcat s450 main

Product Description

Bobcat S450 bucket.png

MEET THE S450 SKID STEER

The 49-hp Bobcat S450 Skid-Steer Loader is a radius-lift-path machine with a compact frame, ideal for working in confined spaces. The S450's narrow turning radius delivers unmatched maneuverability. Count on easy starts, smoother operation and less noise thanks to the 2.4L Tier 4 diesel engine and ultra-efficient fuel system. The tall, wide windows provide an optimal glass-surface area for high visibility to the jobsite. Optional ROPS/FOPS Level II certified cab is engineered for all-day operation with low noise levels, easy-to-reach, intuitive controls and a comfortable seat.

RADIUS LIFT PATH

Bobcat S450 skid steer.png
A radius lift path provides maximum reach at truck bed height. Arm movement forms an arc. More than 80% of that arc delivers better reach at truck bed height. A radius lift path excels in jobs at mid-range heights, like dumping, backfilling or unloading flatbed trucks.

SERVICEABILITY

Bobcat S450 dump.png
Bobcat loaders offer one-sided serviceability thanks to the exclusive belt-drive system. This durable technology with a multi-groove Kevlar belt allows your loader engine to run slower for reduced noise and increased durability. It’s also more efficient with an optimized engine-to-pump package.

OPERATOR COMFORT

When you climb in the cab you'll immediately notice the attention given to operator comfort including, a large entry for easy access, abundant interior space, two control options standard hand and foot or selectable joystick controls to meet operator preferences, and choose an open cab or the optional enclosed pressurized cab to stay comfortable in varying weather conditions.

Bobcat S450 open cab.png



Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Fuel Type
Diesel
Gross HP
49 hp
Turbocharged Engine
Yes
Performance
Rated Operating Capacity (ISO)
1370 lb
Travel Speed
7.6 mph
Tipping Load
2740 lb
Driveline
4WD
Dimensions & Weight
Height to Bucket Hinge Pin
109.5 in
Height with Operator Cab
77.8 in
Length
98.4 in
Length with Standard Bucket
124.9 in
Operating Weight
5370 lb
Reach @ Maximum Height
20.8 in
Turning Radius
76.4 in
Width (with bucket)
62 in
Width
58.6 in
Capacities
Fuel Tank
14.2 gal
Hydraulic System
Auxiliary Std Flow
16.7 gal/min
System Relief @ Quick Couplers
3300 psi
Transmission
Transmission
Hydrostatic (HST)
Travel Speed (2-speed option)
9.2 mph
Make/Model
Model
S450
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
124.90 in
Width
62.00 in
Height
77.80 in
Weight
5370.00 lbs
