New

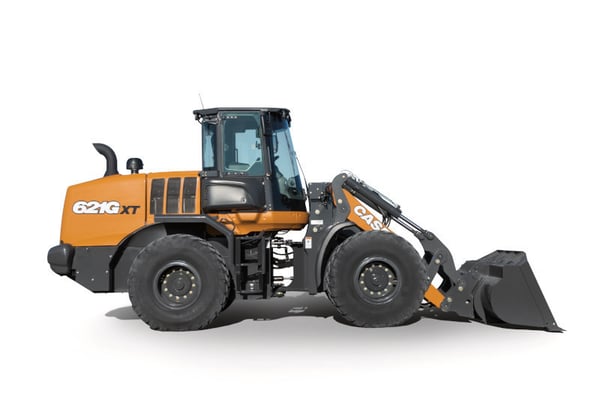

Case Construction 621G Full Size Wheel Loader
New
Case Construction 621G Full Size Wheel Loader
Manufacturers:
- Up to 28-mph
- 172 engine horsepower
- 28,159 lb. operating weight
Product Description
MEET THE 621G WHEEL LOADER
The 28,159-pound CASE 621G wheel loader (172 horsepower (125 kw)) combines powerful breakout forces, fast cycle times and extreme operator comfort and control to deliver all-around performance — whether as a primary mover or as a support loader in larger operations. And now, with the adjustable electro-hydraulic controls, a touchscreen display and collaborative fleet management technologies, the 621G delivers a powerful combination of productivity, efficiency and uptime — all protected by CASE ProCare.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | Open Cab, Enclosed Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Bore X Stroke | 4.09 x 5.20 in |
| Displacement | 411 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F4HFE613W |
| Gross HP | 172 hp |
| No. Of Cylinders | 6 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Breakout Force | 24031 lb |
| Bucket Capacities | 2.15-4.5 yd³ (heaped) |
| Lift Capacity | 13913-15649 lb (full height) |
| Travel Speed | 4.3-28 mph |
| Tipping Load | 18749 lb (full turn tupping load ISO) |
| Dump Angle @ Max Height | 45-55 degrees |
| Power Type | Diesel |
| Driveline | 4WD |
| Capacities | |
|---|---|
| DEF | 15.6 gal |
| Hydraulic Tank | 39 gal |
| Fuel Tank | 65 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3500-3625 psi |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Transmission Range | 4F/3R |
| Make/Model | |
|---|---|
| Model | 621G |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 321.10 in |
| Width | 97.60 in |
| Height | 133.20 in |
| Weight | 29076.00 lbs |
Related Products
Stock #: 101177
Model: 621G
- Enclosed Cab with cold A/C
- 172.0 Horsepower
- Extended Warranty until 01-31-2027

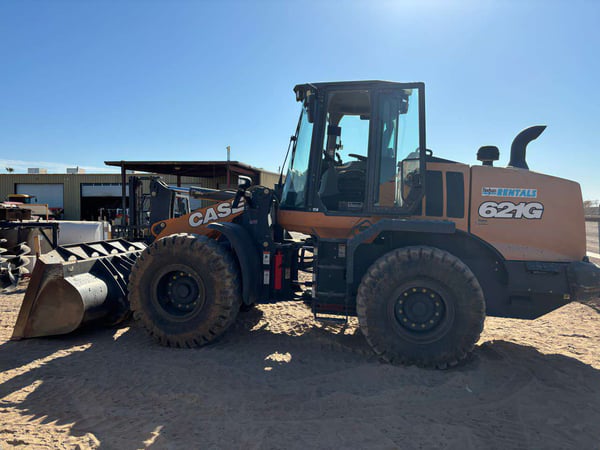

Stock #: 068822
Model: 621G
- Enclosed Cab with cold A/C
- 172.0 Horsepower

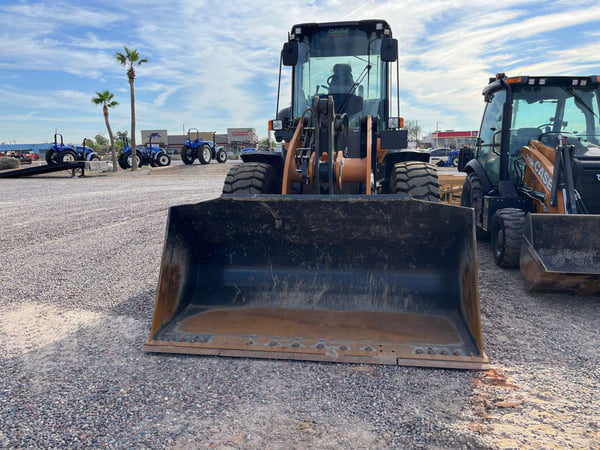

Stock #: 091172
Model: 621G
- Enclosed Cab with cold A/C
- 172.0 Horsepower
- Extended Warranty until 07-27-2027

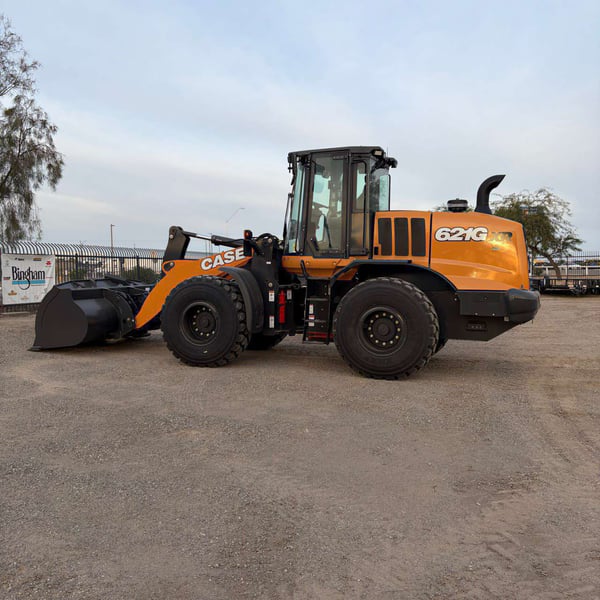

Stock #: 124756
