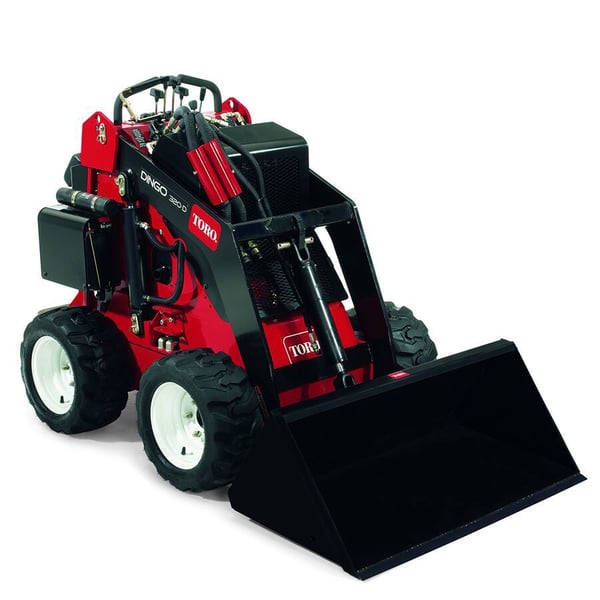

Toro Dingo 320D Compact Wheel Loader

Selected Toro Dingo 320D.jfif
Toro Dingo 320D.jfif

Product Description

Toro Dingo 320 D.jfif

MEET THE DINGO 320-D

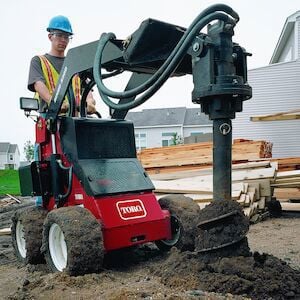

The Dingo 320-D is equipped with a reliable 20 horsepower diesel engine ensuring consistent performance no matter the job. Only 35-inches wide operators can easily get into tight spaces where only hand labor could go before. Four-wheel drive, zero-turn capability, along with a shorter length makes for excellent maneuverability and easy transport. You also get reliable hydraulic power to use a wide range of attachments including buckets, floor scraper, adjustable forks and grapple.

DINGO CONTROLS

The wheeled Dingo’s responsive controls offer unbeatable maneuverability, letting you effortlessly curl, dump, raise, and lower attachments with precision. With instant power to attachments at your fingertips, tackling tough jobs has never been easier or more efficient!

Toro Dingo 320D.jpg

Specs

Additional Specs
Power Type
Diesel
Engine
Displacement
43.88 cu in
Engine Cooling
Liquid
Engine Make
Kubota
Engine Model
D722E3B
Gross HP
20 hp
Performance
Lift Arm Path
Radial lift
Rated Operating Capacity (SAE)
524 lb
Travel Speed
3 mph
Tipping Load
1048 lb
Dump Angle @ Max Height
34 degrees
Power Type
Diesel
Dump Height
47 in
Driveline
4WD
Dimensions & Weight
Ground Clearance
5.8 in
Height
48.7 in
Height to Bucket Hinge Pin
66 in
Length
62 in
Length with Standard Bucket
82.2 in
Operating Weight
1722 lb
Reach @ Maximum Height
28 in
Wheel base
28 in
Width (with bucket)
48.7 in
Width
40.5 in
Capacities
Hydraulic Tank
14.8 gal
Fuel Tank
4 gal
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
320D
Type
Mini Skid Steer
Product Dimensions & Weight
Length
62.00 in
Width
40.50 in
Height
48.70 in
Weight
1722.00 lbs
