Toro Dingo 323 Compact Wheel Loader

Selected Toro Dingo 323.jfif
Toro Dingo 323.jfif

Product Description

Toro Dingo 323.jfif

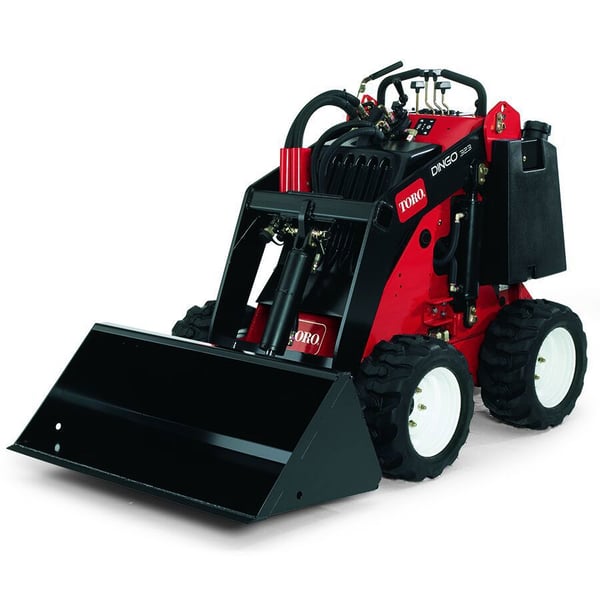

MEET THE DINGO 323

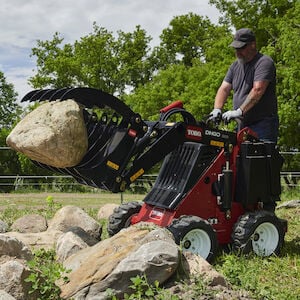

Suitable for light construction tasks including loading/unloading materials, site cleanup, and light excavation is the Dingo 323 Mini Skid Steer. This gas engine model is equipped with a Kohler Command engine yielding higher performance output at a lower weight and trouble-free maintenance. The Dingo 323 is compatible with a wide range of attachments including buckets, augers, forks, trenchers, and grapple buckets. This versatility allows operators to customize the machine for different applications, enhancing productivity and efficiency.

TWO TRANSPORT SPEEDS

The Dingo’s two transport speeds let you switch between maximum hydraulic power for attachments and high-speed mobility with ease! The low-speed option is perfect for new operators, helping them master the machine quickly while getting the job done efficiently!

Toro Dingo323.jfif

Specs

Additional Specs
Power Type
Gas
Engine
Displacement
41 cu in
Engine Cooling
Air cooled
Engine Make
Kohler
Engine Model
Commercial series CH23
Gross HP
23 hp
Performance
Lift Arm Path
Radial lift
Rated Operating Capacity (SAE)
515 lb
Travel Speed
3.7 mph
Tipping Load
1030 lb
Dump Angle @ Max Height
34 degrees
Power Type
Gas
Dump Height
47 in
Driveline
4WD
Dimensions & Weight
Ground Clearance
5.8 in
Height
48.7 in
Height to Bucket Hinge Pin
66 in
Length
62 in
Length without Attachment
62 in
Operating Weight
1567 lb
Reach @ Maximum Height
28 in
Wheel base
28 in
Width (with bucket)
40.5 in
Width
40.5 in
Capacities
Hydraulic Tank
17 gal
Fuel Tank
11.2 gal
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
323
Type
Mini Skid Steer
Product Dimensions & Weight
Length
62.00 in
Width
40.50 in
Height
48.70 in
Weight
1567.00 lbs
