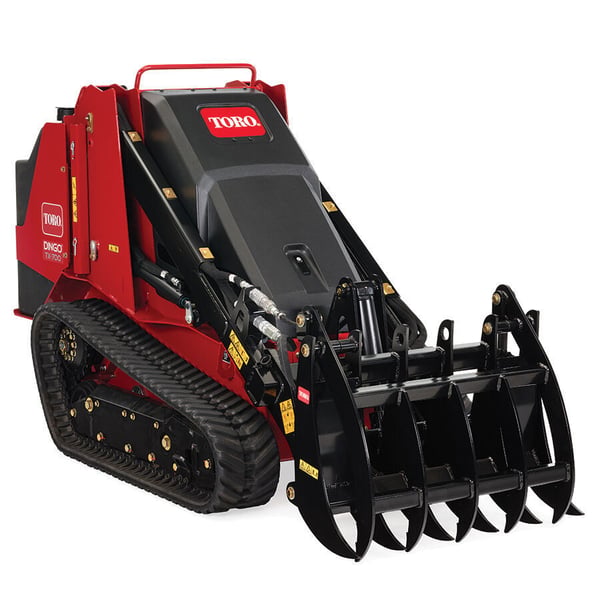

Name: Toro Dingo TX 700 Compact Track Loader
Brand: Toro
SKU: Dingo TX 700
Availability: InStock

Product Description

MEET THE DINGO TX 700

Designed to give you more power in a compact package, the Toro Dingo TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs. of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces. Also available in a wide track configuration.

EFFORTLESS OPERATION

With single-hand joystick control for the traction drive and bucket functions, plus an auxiliary circuit lever for instant attachment power, it’s designed for ease of use. Its compact footprint packs 764 lbs. of rated operating capacity, making it perfect for tight spaces and confined areas. The dedicated stand-on platform enhances comfort and visibility, while the versatile track options—Camso narrow or wide—cater to various terrains, protecting delicate turf. Compatible with numerous attachments like buckets, forks, and grapples, the TX 700 is versatile enough for any job!

Specs

Additional Specs
Power Type	Diesel

Engine
Engine Cooling	Combo Crossflow Radiator and Oil Cooler
Engine Make	Yanmar
Engine Model	3TNV80F
Gross HP	24.7 hp

Performance
Ground Pressure	Narrow track: 13 psi, Wide track: 8 psi
Lift Arm Path	Radial lift
Rated Operating Capacity (SAE)	700-708 lb
Travel Speed	4 mph
Tipping Load	2000-2023 lb
Dump Angle @ Max Height	42 degrees
Power Type	Diesel
Dump Height	52.9 in
Driveline	Track

Dimensions & Weight
Ground Clearance	5.25 in
Height	55.3 in
Height to Bucket Hinge Pin	73.5 in
Length	82 in
Length with Standard Bucket	102.8 in
Length without Attachment	82 in
Length of Track on Ground	126.6 in
Operating Weight	2756-2862 lb
Reach @ Maximum Height	31 in
Track Width	Narrow track: 5.4 in, Wide track: 9.1 in
Wheel base	39 in
Width (with bucket)	Narrow track: 34.2 in, Wide track: 41.4 in
Width	Narrow track: 34.2 in, Wide track: 40.2 in
