Product Description
Built for Southwest Speciality Crop and Vegetable Farming Excellence

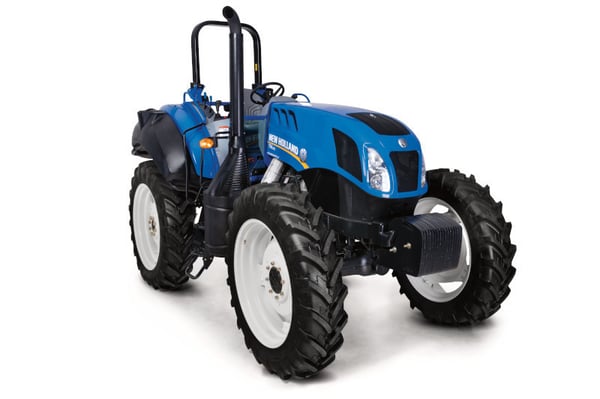

Designed from the ground up with row-crop farmers, vegetable growers, and speciality crop producers in mind, the New Holland TS6.120 Series II High-Clearance tractor delivers class-leading clearance, comfort, power, and durability — perfectly suited for the unique agricultural needs of the Southwest.
Growing speciality crops across sandy soils, irrigation furrows, and tight row spaces requires precision and confidence in your equipment. The TS6.120 High-Clearance stands out with:
Row-Friendly High Clearance: Designed specifically to give vegetable and specialty crop farmers the clearance they need for cultivating, spraying, and harvesting without damaging crops — up to ~28"+ of ground height and adjustable front axle spacing ideal for row widths common in melon, lettuce, chile, and vineyard operations.
Adjustable Axle Spacing: Front tread adjusts from – well over – 72″ to 84″+ to match crop row setups and increases manoeuvrability in tight field conditions.
Hydraulic Flow to Handle Implements: With up to 29 GPM hydraulic flow, this tractor power supports sprayers, cultivators, and other demanding tools without losing precision.
Easy Field Traction: Standard electro-hydraulically activated front-wheel drive engages on the go, helping maintain traction in sandy or soft soils often seen across Arizona, New Mexico, and Southern California.
Performance that Works as Hard as You Do
Powered by a robust Tier 4B Turbo Diesel Engine, the TS6.120 delivers:
119 Rated Engine HP (102 PTO HP): strong and efficient power where you need it most.
Premium Transmissions: Select from a reliable 8×8 hydraulic shuttle with creeper gears for ultra-slow precision speeds in planting or spraying operations that require attention to detail.
Balanced Power and Efficiency: Tier 4B emissions certification and common-rail fuel systems help reduce emissions and fuel use — especially valuable where clear air and sustainability matter.
Operator Comfort + Ease of Use
Day after day in the field means long hours behind the wheel. The TS6.120 addresses this with:
CommandArc™ Operator Controls: Logical and intuitive control placement reduces fatigue and increases workflow efficiency.
VisionView™ Cab or Open ROPS Platform: Choose the comfort that matches your farm’s needs, whether full climate-controlled cab comfort or a rugged open platform for quick in-field access.
Service-Friendly Design: Easy-access hood flips open without tools, speeding up routine maintenance and reducing downtime.
Specs
| Engine | |
|---|---|
| Displacement | 274 cu in |
| Emissions Tier (EPA) | Tier 4B |
| Engine Model | FPT NEF |
| Gross HP | 119 hp |
| No. Of Cylinders | 4 |
| No. of Cylinders/ Valve/ Displacement | 4/16/274 cu in |
| Performance | |
|---|---|
| PTO HP | 102 hp |
| Capacities | |
|---|---|
| DEF | 7.9 gal |
| Fuel Tank | 57.5 gal |
| Hydraulic System | |
|---|---|
| System Type | Fixed displacement pumps (steering, implement, aux) with combining/diverter valve |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 8x8 |
| Make/Model | |
|---|---|
| Model | TS6.120 High Clearance |
| Type | Ag Tractor |
| Product Dimensions & Weight | |
|---|---|
| Length | 192.90 in |
| Width | 84.00 in |
| Height | 128.90 in |
| Weight | 17196.00 lbs |
