New

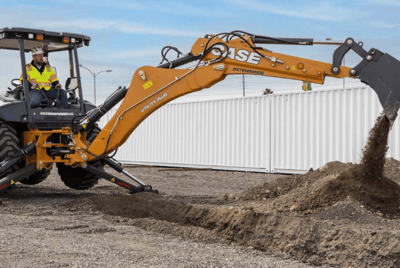

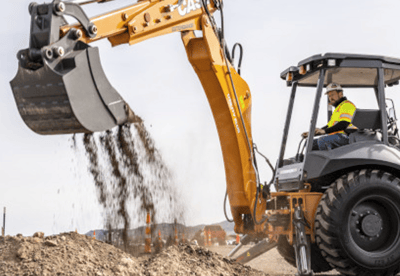

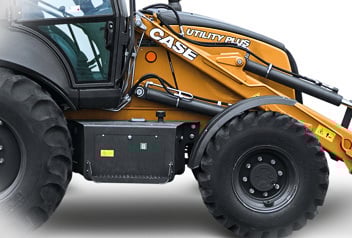

Case Construction 575N EP Utility Plus Backhoe Loader
New
Case Construction 575N EP Utility Plus Backhoe Loader
Model: 575N EP UP
- 74 engine horsepower
- 14' 5" dig depth
- Up to 21.1-mph
Product Description
MEET THE UTILITY PLUS BACKHOE
The Case Construction 575NEP Backhoe is equipped with a 74-horsepower engine, offering powerful digging, loading, and hauling capabilities with a 14' 5" dig depth. Its 4F-4R Power Shuttle Synchromesh transmission ensures smooth operation, while the maintenance-free emissions system requires no added DEF or DPF, making it a reliable choice for expanding your business. Ready to take on more jobs?
OPERATOR APPROVED
DIG DEPTH UPGRADE
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | FPT F5HFL463A |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Backhoe Dig Depth | 14' 5" |
| Backhoe lift Capacity | 3227-5962 lb |
| Breakout Force | 13788 lb |
| Travel Speed | 25 mph |
| Dump Angle @ Max Height | 45 degrees |
| Lift Capacity to Full Height | 8157 lb |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Dump Reach at Max Height | 45 in |
| Height to Bucket Hinge Pin | 11' 9" |
| Height with Operator Cab | 9' 3" |
| Length | 23' 1" |
| Operating Height | 11' 9" |
| Operating Weight | 18298 lb |
| Wheel base | 19.7 in |
| Width | 90 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 28.25 gal |
| Fuel Tank | 34 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 575N EP UP |
| Type | Backhoe |
| Product Dimensions & Weight | |
|---|---|
| Length | 277.00 in |
| Width | 91.00 in |
| Height | 111.00 in |
| Weight | 18298.00 lbs |
