New
Case Construction 580N Construction King Backhoe Loader
New
Case Construction 580N Construction King Backhoe Loader
Model: 580N CK
- 90 engine horsepower
- 14' 8" dig depth
- Up to 24.6-mph
Product Description

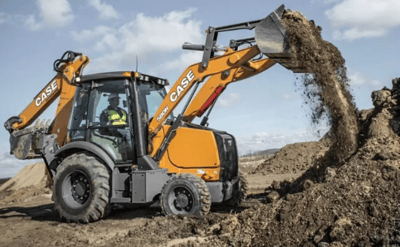

MEET THE 580N BACKHOE
The backhoe that set the standard now comes standard with more of the features that operators and businesses want. Fuel-saving ECO Mode, the precision of ProControl, SiteWatch Telematics – all included. And an optional PowerDrive transmission gives you even greater responsiveness and speed around the jobsite. Whether in rental, landscaping or looking to add a do-it-all machine to your construction fleet, the Case 580N backhoe brings versatile, powerful and efficient performance.
PROCONTROL SYSTEM

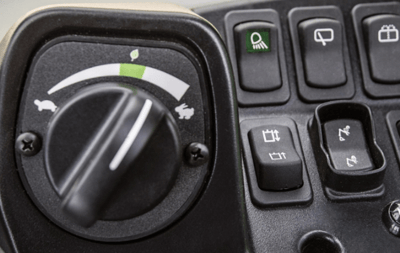

FUEL EFFICIENCY
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | FPT F5BFL413C |
| Fuel Type | Diesel |
| Gross HP | 90 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Backhoe Dig Depth | 14' 9" |
| Backhoe lift Capacity | 2472-5398 lb |
| Breakout Force | 10622 lb |
| Travel Speed | 24.6 mph |
| Dump Angle @ Max Height | 47 degrees |
| Lift Capacity to Full Height | 6803 lb |
| Dimensions & Weight | |
|---|---|
| Dump Reach at Max Height | 31.5 in |
| Height to Bucket Hinge Pin | 11' 3" |
| Height with Operator Cab | 8' 11" |
| Length | 23' 5" |
| Operating Height | 13' 9" |
| Operating Weight | 16589-17751 lb |
| Wheel base | 84 in |
| Width | 82 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 27.75 gal |
| Fuel Tank | 35 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 580N CK |
| Type | Backhoe |
| Product Dimensions & Weight | |
|---|---|
| Length | 281.00 in |
| Width | 82.00 in |
| Height | 130.00 in |
| Weight | 16589.00 lbs |
