Case Construction 580N EP Backhoe Loader

Case Const 580 N E P

Product Description

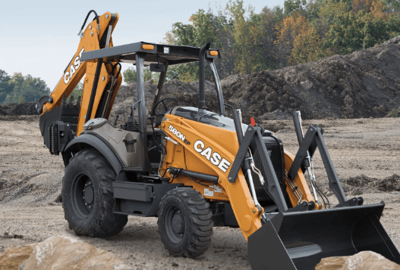

Case Construction 580NEP backhoe.png

MEET THE 580N EP BACKHOE

This efficient backhoe loader combines the quintessential features of the N Series and a Tier 4 Final solution, that's as simple as it gets – no diesel exhaust fluid to add, no particulate filter to maintain. That, combined with user-friendly controls, available 4WD and standard SiteWatch Telematics, makes the 580N EP easy for operators of any level and an ideal machine for the rental market. For the digging power of a light-duty excavator, the hauling capabilities of a wheel loader or the versatility of a skid steer, the 580N EP is where efficiency meets power.

ATTACHMENTS

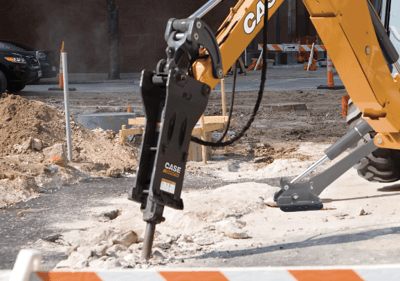

Case Construction backhoe attachment.png
Attachments take your base asset — the backhoe — and turn it into an even more versatile platform for getting more done with a single machine and a single operator. Augers, brooms, buckets, forks, grapples, hydraulic hammers, and rippers are just a few compatible attachments for the 580N EP backhoe. Switch out attachments from the comfort of the cab with the hydraulic quick coupler.

OPERATOR COMFORT AND SAFETY

Case Construction 580N EP cab.png
The ROPS/FOPS certified protective canopy with rear fender extensions and a rearview convex mirror ensures operator safety and visibility in challenging environments. Equipped with a mechanical suspension seat that swivels 180° and features anti-vandalism protection, as well as a single lever 4-function loader control, the backhoe delivers precise and responsive operation, enhanced by the ProControl system for superior control.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5HFL463D
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
15'
Backhoe lift Capacity
2472-5398 lb
Breakout Force
9607 lb
Travel Speed
21.3 mph
Dump Angle @ Max Height
46 degrees
Lift Capacity to Full Height
6503 lb
Dimensions & Weight
Dump Reach at Max Height
26.7 in
Height to Bucket Hinge Pin
11' 3"
Height with Operator Cab
8' 11"
Length
23' 1"
Operating Height
13' 9"
Operating Weight
15995-16093 lb
Wheel base
84 in
Width
86 in
Capacities
Hydraulic Tank
26.5 gal
Fuel Tank
30 gal
Transmission
Transmission
Power Shuttle
Transmission Range
4F/4R
Make/Model
Model
580N EP
Type
Backhoe
Product Dimensions & Weight
Length
277.00 in
Width
86.00 in
Height
130.00 in
Weight
15995.00 lbs
