Product Description

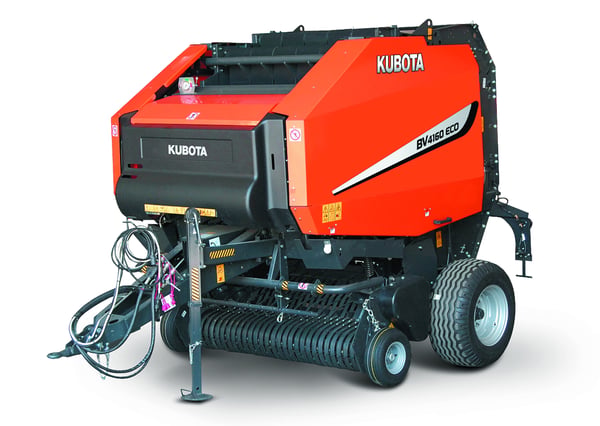

MEET THE BV4160 ECONO BALER
The BV4160 ECONO variable chamber round baler produces high density 4’ x 5’ 5” bales and increases your yield with a low profile 67-inch pickup working width. The new twin binding system ensures trouble-free and reliable operation throughout your baling experience. Transport is easy to and from the hayfield with a narrow transport width of 99-inches even with a larger bale diameter. The heavy duty BV4160 ECONO will meet your baling needs and reduce your crop loss!

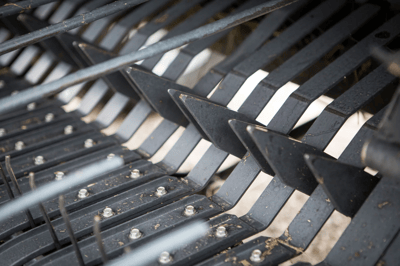

FORK FEEDER
Kubota's BV4160 Econo model is fitted with an efficient fork feeder intake system. This system provides a direct feed into the bale chamber. The wide opening allows almost unrestricted intake capacity for a fast and efficient baling process. In conjunction with a crop deflector, the fork feeder ensures a consistent crop flow into the bale chamber, which ensures high density bales.

Specs
Additional Specs | |
---|---|
Minimum PTO HP Required | 40-60 hp |
Performance | |
---|---|
Driveline | Pull-Type |
PTO RPM | Wide angle/540 |
Chamber | |
---|---|
Bale Formation | 5 belts + 3 rollers |
Bale Ramp | Standard |
Diameter Max in. | 65 in |
Diameter Min in. | 31 in |
Types of Belts | Mato Plate |
Pickup | |
---|---|
Flare to Flare Pickup | 63 in |
Lift | Hydraulic |
Lift Protection | Radial Clutch |
Number of Tine Rows | 4 |
Pneumatic Gauge Wheel | Standard |
Tine Spacing in. | 2.36 in |
Tine to Tine Pickup | 55 in |
Windguard | Crop deflector |
Working Width in. | 67 in |
Seeding Specs | |
---|---|
Monitor | Focus |
Make/Model | |
---|---|
Model | BV4160 ECONO |
Type | Round Baler |
Tying System | |
---|---|
Twine Type | Double arm |
Product Dimensions & Weight | |
---|---|
Length | 176.00 in |
Width | 99.00 in |
Height | 106.00 in |
Weight | 5842.00 lbs |
