New
New Holland Roll-Belt 560 Round Baler
New

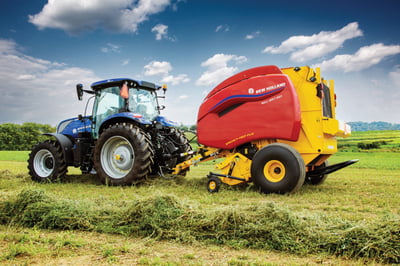

New Holland Roll-Belt 560 Round Baler
Model: Roll-Belt 560
- 36-72 in bale diameter
- 61.5 in bale width
- 80 minimum PTO horsepower required
Product Description
NEW HOLLAND ROLL-BELT 560
The robust Roll-Belt 560 produces uniform bales up to 72 inches in diameter and weighing up to 2,500-pounds. The ActiveSweep, heavy-duty, 5-bar pickup delivers up to 25% more capacity than the four-bar and with up to 160, 6 mm, curved, rubber-mounted tines provide the utmost durability in the heaviest windrows. Innovative precision solutions like Bale Command II Plus monitor, in-cab density control, and factory moisture sensing help you make more informed decisions on the go. Choose the Bale-Slice system model for even denser bales that are simpler to feed and easier for livestock to digest.
Specs
| Additional Specs | |
|---|---|
| IntelliView IV Touch Screen | Optional |
| Minimum PTO HP Required | 80 hp |
| Dimensions & Weight | |
|---|---|
| Height | 122 in |
| Tire Size | 21.5L -16.1 |
| Chamber | |
|---|---|
| Bale Ramp | Spring bale ramp |
| Bale Width | 61.5 in |
| Diameter Max in. | 72 in |
| Pickup | |
|---|---|
| Flare to Flare Pickup | 90 in |
| Tine to Tine Pickup | 82 in |
| Pick-up | Activesweep (heavy-duty) |
| Baler Specs | |
|---|---|
| Bale Width | 61.5 in |
| ISOBUS Compatible | Optional |
| Make/Model | |
|---|---|
| Model | Roll-Belt 560 |
| Type | Round Baler |
| Product Dimensions & Weight | |
|---|---|
| Length | 189.00 in |
| Width | 128.50 in |
| Height | 122.00 in |
| Weight | 7930.00 lbs |
