New

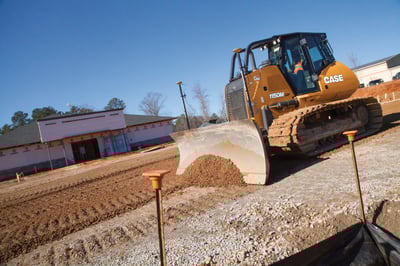

Case Construction 1150M Dozer
New
Case Construction 1150M Dozer
Model: 1150M
- 120-inch blade width
- 127 engine horsepower
- 32,637 lb. rated operating weight
Product Description
MEET THE 1150M DOZER
It starts with industry-leading drawbar pull – 48,000 lbs. of dirt-relocating power. The engine features maintenance-free Tier 4 Final emissions. Coupled with optional machine control and customized operation settings, you can cut fuel costs, save time and take on more jobs. The visibility is unmatched, giving you the ability to grade close to buildings. And with easy access to maintenance points, you can maximize your uptime and grade a better bottom line.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 409 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 138 hp |
| No. Of Cylinders | 6 |
| Performance | |
|---|---|
| Ground Pressure | 5.31-7.60 psi |
| Travel Speed | 5.8 mph |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Blade Width | 120-132 in |
| Ground Clearance | 12.7 in |
| Height | 116 in |
| Length | 244 in |
| Operating Weight | 31134-32637 lb |
| Width | 110 in |
| Capacities | |
|---|---|
| DEF | 14 gal |
| Hydraulic Tank | 51 gal |
| Fuel Tank | 85 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 48000 lb (using standard track chain) |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 1150M |
| Type | Crawler Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 244.00 in |
| Width | 110.00 in |
| Height | 116.00 in |
| Weight | 32637.00 lbs |
